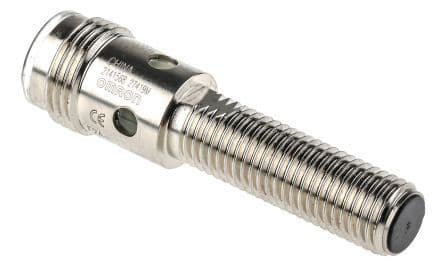

The Omron E2A-M08KS02-M1-B1 is a proximity sensor with an inductive sensing method and a sensing distance of 2mm. It operates at a response frequency of 1.5kHz and has an IP67 rating for protection against solid particles and water. The sensor is shielded and has a maximum operating temperature of 70°C and a minimum operating temperature of -40°C. It is designed for flush, panel mount and has a maximum supply voltage of 32V and a minimum supply voltage of 10V. The sensor has a maximum operating supply current of 10mA and a switching current of 200mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2A-M08KS02-M1-B1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E2A-M08KS02-M1-B1 technical specifications.
| Body Material | Brass |
| Height | 13mm |
| Length | 43mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 10V |
| Mount | Flush, Panel |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 24V |
| Output Configuration | PNP |
| Output Type | PNP |
| Package Quantity | 1 |
| Ratings | IP67 |
| Response Frequency | 1.5kHz |
| Sensing Distance | 2mm |
| Sensing Method | Inductive |
| Series | E2A |
| Shielding | Shielded |
| Switching Current | 200mA |
| Termination | Connector |
| Width | 15mm |
| RoHS | Compliant |
