Shielded, inductive proximity sensor with a 4mm sensing distance. Features a brass body, M12 connector termination, and panel mount. Operates with DC supply voltages from 10V to 32V, with a typical operating voltage of 24V and 10mA supply current. PNP normally open output configuration. Rated IP67, with an operating temperature range of -25°C to 70°C.
MountingPanel
Quick Jump:
Technical Specifications
Omron E2A-M12LS04-M1-B1 technical specifications.
General
Body Material
Brass
Height
17mm
Length
70mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Supply Voltage (DC)
24V
Min Supply Voltage (DC)
12V
Max Supply Voltage
32V
Min Supply Voltage
10V
Mount
Panel
Operating Supply Current
10mA
Operating Supply Voltage
24V
Output Configuration
PNP
Output Type
PNP
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Ratings
IP67
Reach SVHC Compliant
Unknown
Response Frequency
1kHz
RoHS Compliant
Yes
Sensing Distance
4mm
Sensing Method
Inductive
Series
E2A
Shielding
Shielded
Termination
Connector
Throw Configuration
SPST
Width
19.62mm
Compliance
RoHS
Compliant
Datasheet
Omron E2A-M12LS04-M1-B1 Datasheet
Download the complete datasheet for Omron E2A-M12LS04-M1-B1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

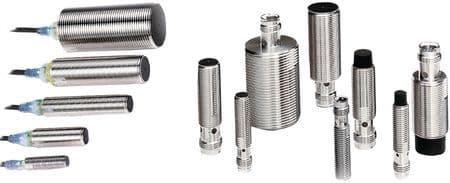

Product Images
