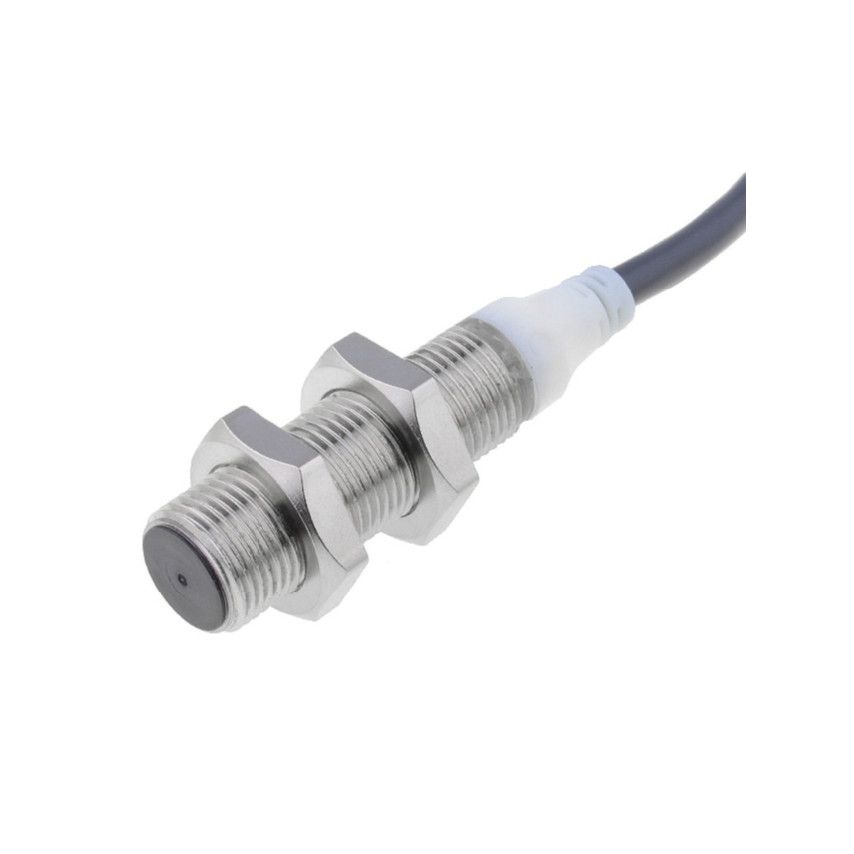

The Omron E2A-M12LS04-WP-B15M is a proximity sensor with an inductive sensing method and a sensing distance of 4mm. It operates at a response frequency of 1kHz and can handle a switching current of 200mA. The sensor is designed for use with a 24V operating supply voltage and features a PNP output configuration. It is packaged in a shielded design and meets the IP67 ratings for environmental sealing. The sensor is available in a bulk packaging configuration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2A-M12LS04-WP-B15M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Length | 56mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Flush, Cable |
| Operating Supply Voltage | 24V |
| Output Configuration | PNP |
| Output Type | PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Response Frequency | 1kHz |
| Sensing Distance | 4mm |
| Sensing Method | Inductive |
| Series | E2A |
| Shielding | Shielded |
| Switching Current | 200mA |
| Termination | Cable Leads |
| RoHS | Compliant |
Download the complete datasheet for Omron E2A-M12LS04-WP-B15M to view detailed technical specifications.
