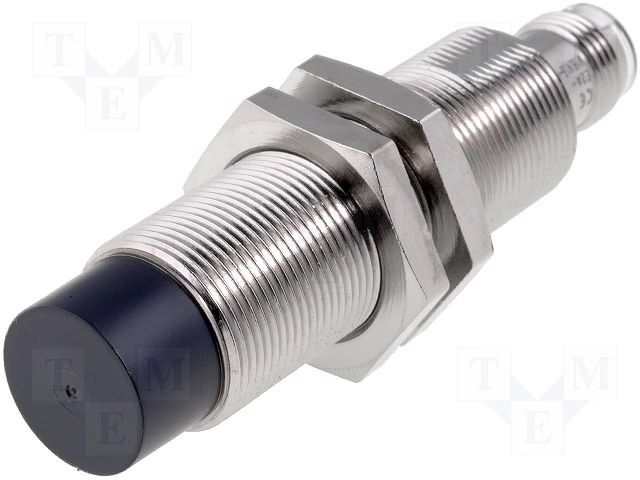

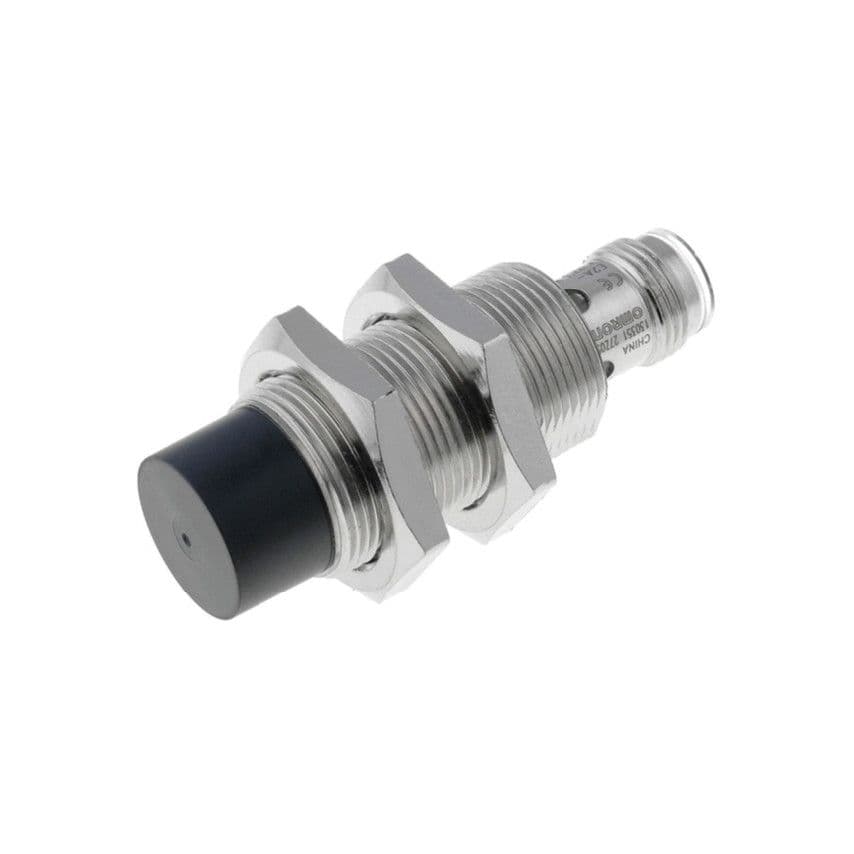

Inductive proximity sensor with a 16mm sensing distance and NPN output configuration. Features a brass cylindrical body, panel mount, and connector termination. Operates within a 10V to 32V supply voltage range with a typical 24V operating voltage and 200mA switching current. Rated IP67 for environmental protection, it functions between -25°C and 70°C with a 400Hz response frequency.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2A-M18LN16-M1-C1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E2A-M18LN16-M1-C1 technical specifications.
| Body Material | Brass |
| Height | 24mm |
| Length | 75mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 24V |
| Output Configuration | NPN |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67 |
| Response Frequency | 400Hz |
| Sensing Distance | 16mm |
| Sensing Method | Inductive |
| Series | E2A |
| Shielding | Unshielded |
| Switching Current | 200mA |
| Termination | Connector |
| Width | 27.7mm |
| RoHS | Compliant |
Download the complete datasheet for Omron E2A-M18LN16-M1-C1 to view detailed technical specifications.
