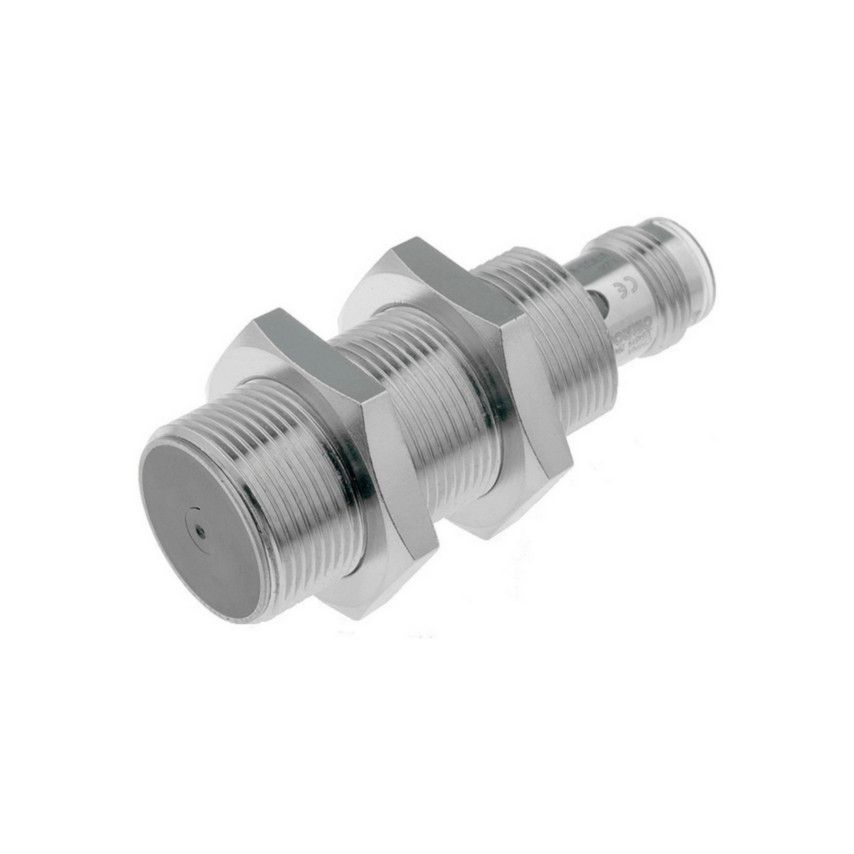

Inductive proximity sensor with an 8mm sensing distance, featuring an NPN output configuration. Operates with a supply voltage range of 10V to 32VDC and a maximum switching current of 200mA. Constructed with a brass body and rated IP67 for environmental protection. This shielded sensor offers a response frequency of 500Hz and utilizes a connector termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2A-M18LS08-M1-C1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E2A-M18LS08-M1-C1 technical specifications.
| Body Material | Brass |
| Height | 24mm |
| Length | 75mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 24V |
| Output Configuration | NPN |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67 |
| Response Frequency | 500Hz |
| Sensing Distance | 8mm |
| Sensing Method | Inductive |
| Series | E2A |
| Shielding | Shielded |
| Switching Current | 200mA |
| Termination | Connector |
| Throw Configuration | SPST |
| Width | 27.7mm |
| RoHS | Compliant |
