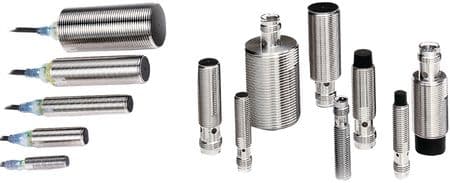

PNP output inductive proximity sensor with a 30mm sensing distance. Features a brass cylindrical body, panel mount, and connector termination. Operates with a DC supply voltage range of 10-32V, typically 24V, and draws 10mA operating current. With an operating temperature range of -25°C to 70°C and IP67 rating, this unshielded sensor offers a response frequency of 100Hz.
MountingPanel
Quick Jump:
Technical Specifications
Omron E2A-M30LN30-M1-B1 technical specifications.
General
Body Material
Brass
Height
36mm
Length
80mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Supply Voltage (DC)
24V
Min Supply Voltage (DC)
12V
Max Supply Voltage
32V
Min Supply Voltage
10V
Mount
Panel
Operating Supply Current
10mA
Operating Supply Voltage
24V
Output Configuration
PNP
Output Type
PNP
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Ratings
IP67
Reach SVHC Compliant
No
Response Frequency
100Hz
Sensing Distance
30mm
Sensing Method
Inductive
Series
E2A
Shielding
Unshielded
Termination
Connector
Width
41.54mm
Compliance
RoHS
Compliant
Datasheet
Omron E2A-M30LN30-M1-B1 Datasheet
Download the complete datasheet for Omron E2A-M30LN30-M1-B1 to view detailed technical specifications.
