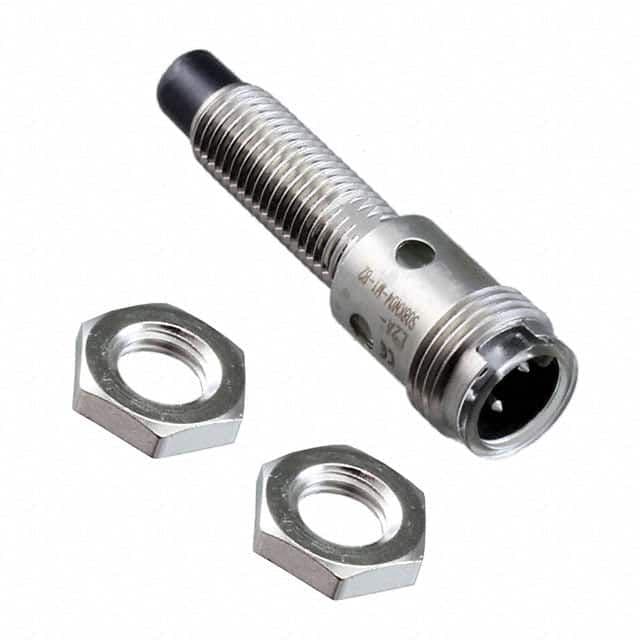

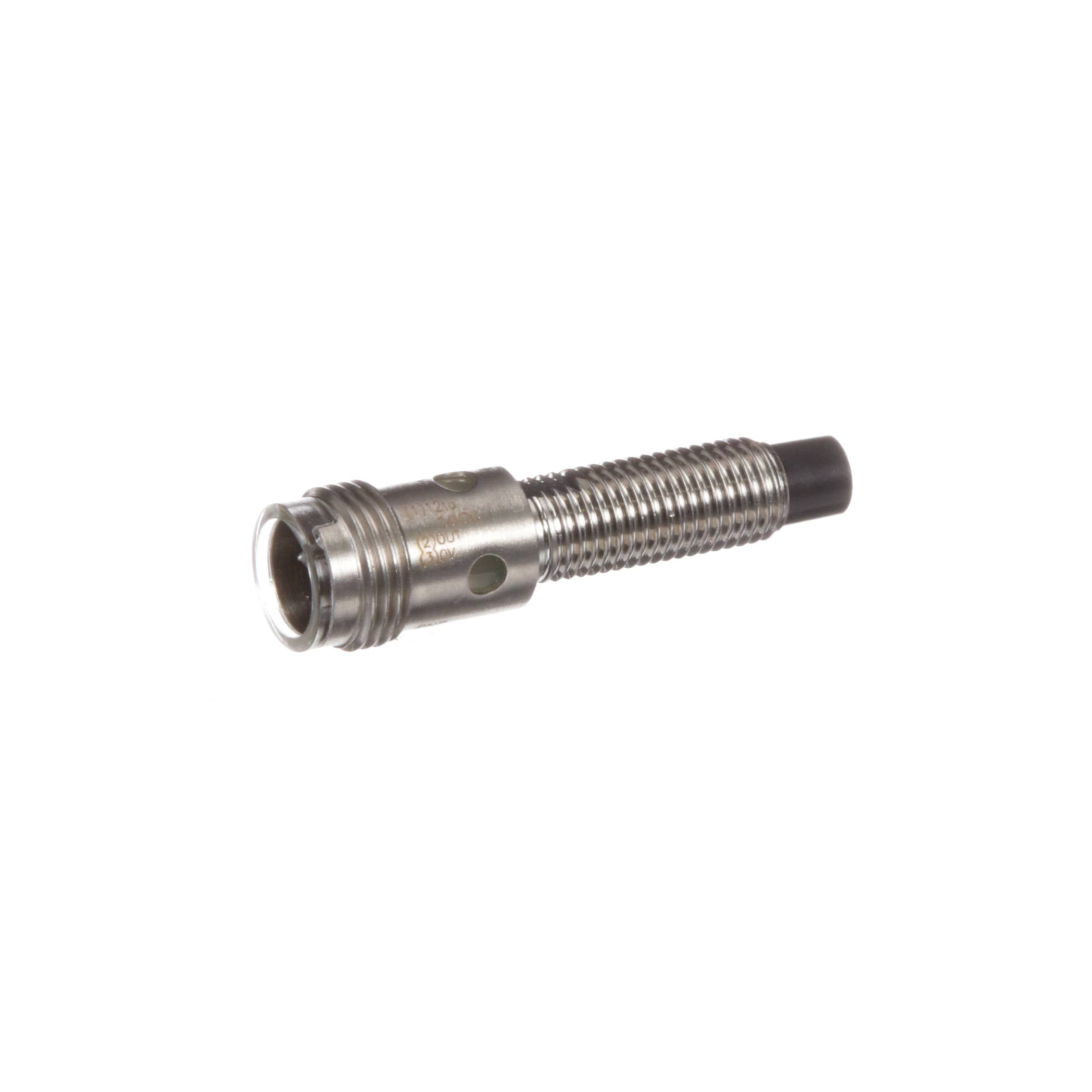

The Omron E2A-S08KN04-M1-B2 is a proximity sensor with an inductive sensing method and a sensing distance of 0.157inch. It operates at a response frequency of 1kHz and has an IP67 rating for protection against dust and water. The sensor is powered by a 24V supply voltage and has a PNP output configuration. It is designed for panel mount installation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2A-S08KN04-M1-B2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Stainless Steel |
| Length | 27mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Operating Supply Voltage | 24V |
| Output Configuration | PNP |
| Output Type | PNP |
| Package Quantity | 1 |
| Ratings | IP67 |
| Response Frequency | 1kHz |
| Sensing Distance | 0.157inch |
| Sensing Method | Inductive |
| Series | E2A |
| Shielding | Unshielded |
| Switching Current | 200mA |
| Termination | Connector |
| RoHS | Compliant |
Download the complete datasheet for Omron E2A-S08KN04-M1-B2 to view detailed technical specifications.
