Technical Specifications

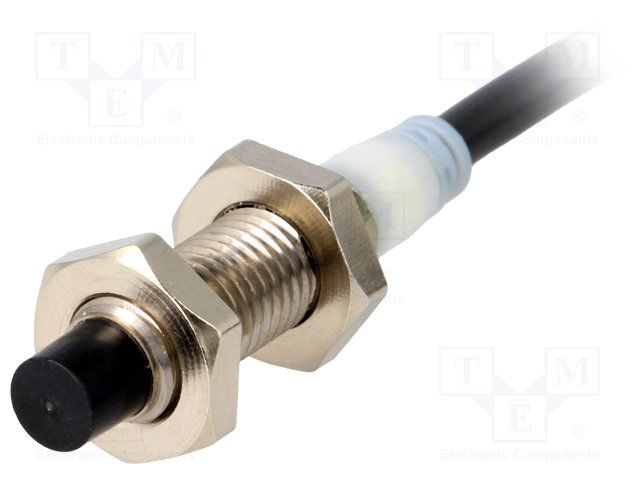

Omron E2A-S08KN04-WP-B12M technical specifications.
General
| Body Material | Stainless Steel |
| Length | 40mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 32V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 10V |
| Mount | Panel, Flush |
| Operating Supply Voltage | 24V |
| Output Type | PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Frequency | 1kHz |
| Sensing Distance | 0.157inch |
| Sensing Method | Inductive |
| Series | E2A |
| Shielding | Unshielded |
| Switching Current | 200mA |
| Termination | Cable Leads |
Compliance
| RoHS | Compliant |
Datasheet
Omron E2A-S08KN04-WP-B12M Datasheet
Download the complete datasheet for Omron E2A-S08KN04-WP-B12M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
