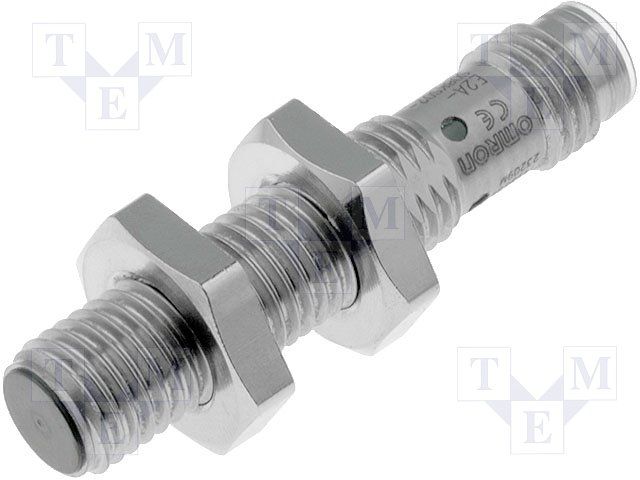

The Omron E2A-S08KS02-M5-C2 is an inductive proximity sensor with a stainless steel body, operating within a temperature range of -25°C to 70°C. It features a sensing distance of 2mm and a response frequency of 1.5kHz. The sensor is rated for IP67 and has a shielded design. It operates at 24V with a supply current of 10mA and can switch up to 200mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2A-S08KS02-M5-C2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E2A-S08KS02-M5-C2 technical specifications.
| Body Material | Stainless Steel |
| Height | 13mm |
| Length | 39mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Flush, Panel |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 24V |
| Output Configuration | NPN |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67 |
| Response Frequency | 1.5kHz |
| Sensing Distance | 2mm |
| Sensing Method | Inductive |
| Series | E2A |
| Shielding | Shielded |
| Switching Current | 200mA |
| Termination | Connector |
| Width | 15mm |
| RoHS | Compliant |
Download the complete datasheet for Omron E2A-S08KS02-M5-C2 to view detailed technical specifications.
