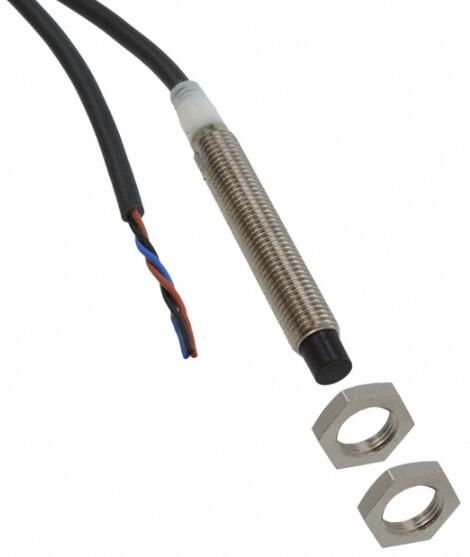

Inductive proximity sensor with a 4mm sensing distance and PNP output. Features a stainless steel body, panel mount, and cable lead termination. Operates within a 10V to 32V supply voltage range, with a typical 24V operating voltage and 10mA operating supply current. Rated IP67 for environmental protection, it functions between -25°C and 70°C with a 1kHz response frequency and 200mA switching current.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2A-S08LN04-WP-B12M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E2A-S08LN04-WP-B12M technical specifications.
| Body Material | Stainless Steel |
| Height | 13mm |
| Length | 62mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 24V |
| Output Configuration | PNP |
| Output Type | PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67 |
| Response Frequency | 1kHz |
| Sensing Distance | 4mm |
| Sensing Method | Inductive |
| Series | E2A |
| Shielding | Unshielded |
| Switching Current | 200mA |
| Termination | Cable Leads |
| Width | 15mm |
| RoHS | Compliant |
