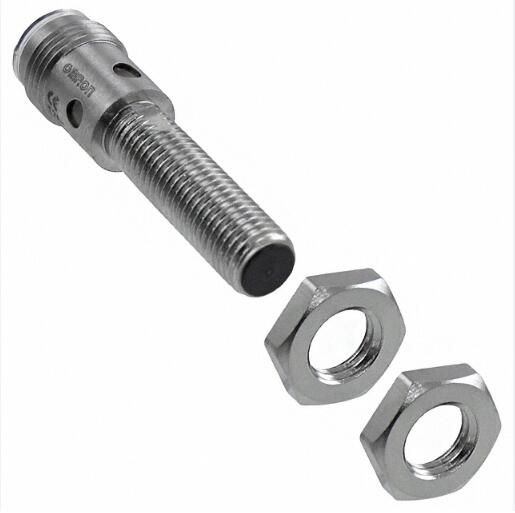

Inductive proximity sensor, 2mm sensing distance, shielded, stainless steel body. Features a 10V to 32V DC supply voltage range, 200mA switching current, and NPN output configuration. Operates within a -25°C to 70°C temperature range and offers IP67 environmental protection. Panel mount design with M8 connector termination.
MountingPanel
Quick Jump:
Technical Specifications
Omron E2AS08KS02M1C1 technical specifications.
General
Body Material
Stainless Steel
Height
13mm
Length
43mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Supply Voltage (DC)
32V
Min Supply Voltage (DC)
10V
Max Supply Voltage
32V
Min Supply Voltage
10V
Mount
Panel
Operating Supply Current
10mA
Operating Supply Voltage
24V
Output Configuration
NPN
Output Type
NPN
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Ratings
IP67
Reach SVHC Compliant
Unknown
Response Frequency
1.5kHz
RoHS Compliant
Yes
Sensing Distance
2mm
Sensing Method
Inductive
Series
E2A
Shielding
Shielded
Switching Current
200mA
Termination
Connector
Throw Configuration
SPST
Width
15mm
Compliance
RoHS
Compliant
