Inductive proximity sensor with a 2mm sensing distance and PNP output configuration. Features a stainless steel body, panel mount, and connector termination. Operates within a 12VDC to 24VDC supply voltage range, with a maximum switching current of 200mA and a response frequency of 1.5kHz. Rated IP67 for environmental protection, this shielded sensor is RoHS compliant and operates between -25°C and 70°C.
MountingPanel
Quick Jump:
Technical Specifications
Omron E2AS08KS02M5B1 technical specifications.
General
Body Material
Stainless Steel
Height
13mm
Length
30mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Supply Voltage (DC)
24V
Min Supply Voltage (DC)
12V
Max Supply Voltage
32V
Min Supply Voltage
10V
Mount
Panel
Operating Supply Current
10mA
Operating Supply Voltage
24V
Output Configuration
PNP
Output Type
PNP
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Ratings
IP67
Reach SVHC Compliant
Unknown
Response Frequency
1.5kHz
RoHS Compliant
Yes
Sensing Distance
2mm
Sensing Method
Inductive
Series
E2A
Shielding
Shielded
Switching Current
200mA
Termination
Connector
Width
15mm
Compliance
RoHS
Compliant
Datasheet
Omron E2AS08KS02M5B1 Datasheet
Download the complete datasheet for Omron E2AS08KS02M5B1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

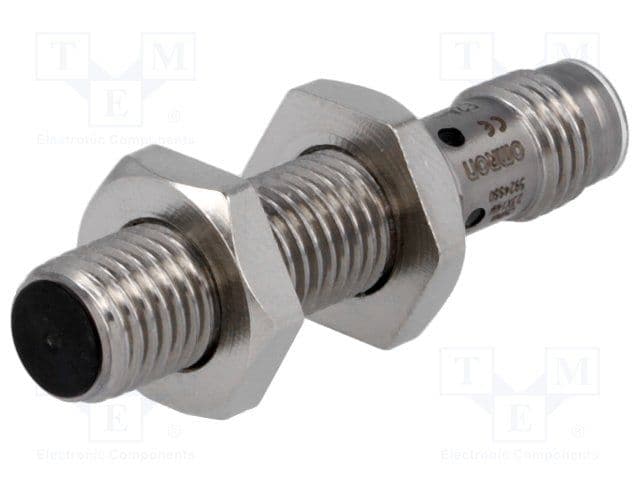

Product Images
