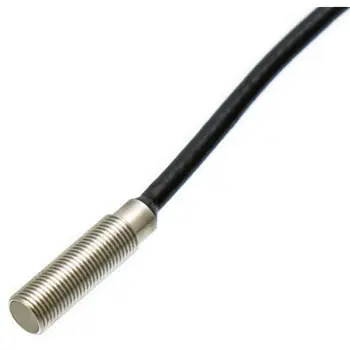

The Omron E2CY-X1R5A is an inductive proximity sensor with a stainless steel body, suitable for operation between 10V and 30V. It features a sensing distance of 1.5mm and a sensing method of inductive detection. The sensor is rated for IP67 and has a maximum operating temperature of 55°C and a minimum operating temperature of -10°C. It is available in bulk packaging and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2CY-X1R5A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E2CY-X1R5A technical specifications.
| Body Material | Stainless Steel |
| Height | 8mm |
| Length | 18mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Output Configuration | NPN |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67 |
| Response Frequency | 100Hz |
| RoHS Compliant | Yes |
| Sensing Distance | 1.5mm |
| Sensing Method | Inductive |
| Series | E2C |
| Shielding | Shielded |
| Termination | Cable Leads |
| Width | 9.23mm |
| RoHS | Compliant |
