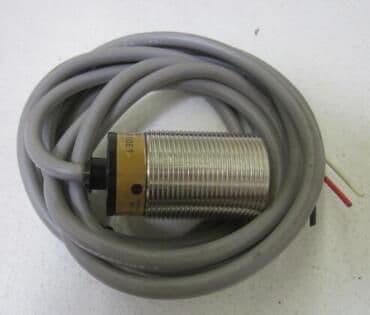

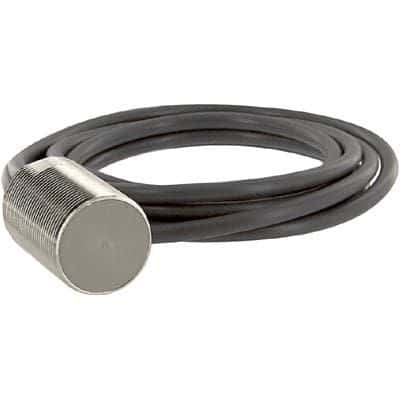

Inductive proximity sensor with a brass body, measuring 42mm in height, 60mm in length, and 42mm in width. Features a 10mm sensing distance and operates with an NPN output configuration. Suitable for a wide temperature range from -40°C to 85°C, with a DC supply voltage range of 10V to 40V. Offers IP67 protection and a response frequency of 400Hz, with termination via cable leads. Mounting options include brackets, DIN rail, and panel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2E-X10E1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E2E-X10E1 technical specifications.
| Body Material | Brass |
| Height | 42mm |
| Lead Free | Contains Lead |
| Length | 60mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 40V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 10V |
| Mount | Brackets, DIN Rail, Panel |
| Operating Supply Voltage | 30V |
| Output Configuration | NPN |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Frequency | 400Hz |
| RoHS Compliant | No |
| Sensing Distance | 10mm |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Shielded |
| Termination | Cable Leads |
| Width | 42mm |
| RoHS | Not Compliant |
Download the complete datasheet for Omron E2E-X10E1 to view detailed technical specifications.
