Shielded inductive proximity sensor with a brass body, offering a sensing distance of 0.394 inches. Operates within a temperature range of -40°C to 85°C and supports DC supply voltages from 10V to 40V. Features a PNP output configuration and cable lead termination, with IP67 and IP68 ratings for environmental protection. Mounting options include brackets, DIN rail, and panel.
MountingBrackets, DIN Rail, Panel
Quick Jump:
Technical Specifications
Omron E2E-X10F1 technical specifications.
General
Body Material
Brass
Height
42mm
Length
60mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
40V
Min Supply Voltage (DC)
10V
Max Supply Voltage
40V
Min Supply Voltage
10V
Mount
Brackets, DIN Rail, Panel
Output Configuration
PNP
Output Type
PNP
Package Quantity
1
Packaging
Bulk
Ratings
IP68, IP67
Reach SVHC Compliant
Unknown
Response Frequency
400Hz
RoHS Compliant
No
Sensing Distance
0.394inch
Sensing Method
Inductive
Series
E2E
Shielding
Shielded
Termination
Cable Leads
Width
42mm
Compliance
RoHS
Not Compliant
Datasheet
Omron E2E-X10F1 Datasheet
Download the complete datasheet for Omron E2E-X10F1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

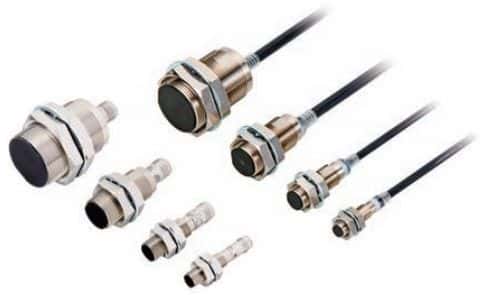

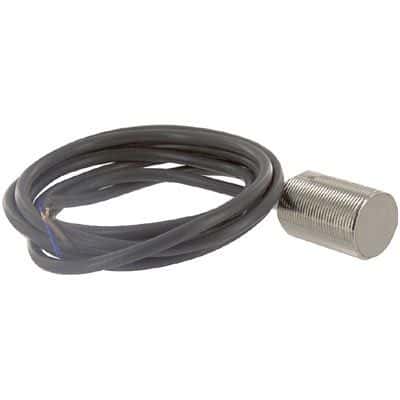

Product Images
