The Omron E2E-X14MD1S-M1 is an inductive proximity sensor with a sensing distance of 0.551inch and a response frequency of 400Hz. It operates within a temperature range of -25°C to 70°C and is powered by a 24V supply voltage. This sensor is rated for IP67 and is compliant with RoHS regulations. It features a brass body and a connector termination, with dimensions of 29mm in height and width, and 55mm in length.
Quick Jump:
Technical Specifications
Omron E2E-X14MD1S-M1 technical specifications.
General
| Body Material | Brass |
| Height | 29mm |
| Length | 55mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Operating Supply Voltage | 24V |
| Package Quantity | 1 |
| Ratings | IP67 |
| Response Frequency | 400Hz |
| RoHS Compliant | Yes |
| Sensing Distance | 0.551inch |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Unshielded |
| Termination | Connector |
| Width | 29mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron E2E-X14MD1S-M1 Datasheet
Download the complete datasheet for Omron E2E-X14MD1S-M1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

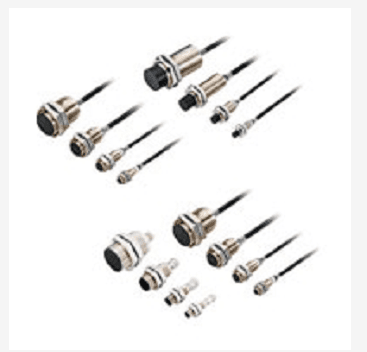

Product Images
