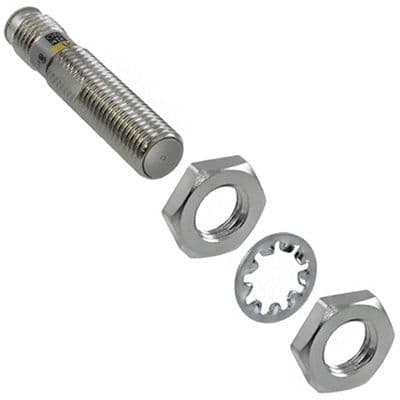

The Omron E2E-X2D1-M3G is a proximity sensor with a stainless steel body, operating within a temperature range of -25°C to 70°C. It features a sensing distance of 2mm and a sensing method of inductive sensing. The sensor is rated for a switching current of 100mA and is compliant with RoHS regulations. It is available in a shielded package with a panel mount and is packaged in bulk.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2E-X2D1-M3G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Stainless Steel |
| Height | 15mm |
| Length | 37mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Frequency | 1.5kHz |
| RoHS Compliant | Yes |
| Sensing Distance | 2mm |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Shielded |
| Switching Current | 100mA |
| Termination | Connector |
| Width | 15mm |
| RoHS | Compliant |
Download the complete datasheet for Omron E2E-X2D1-M3G to view detailed technical specifications.
