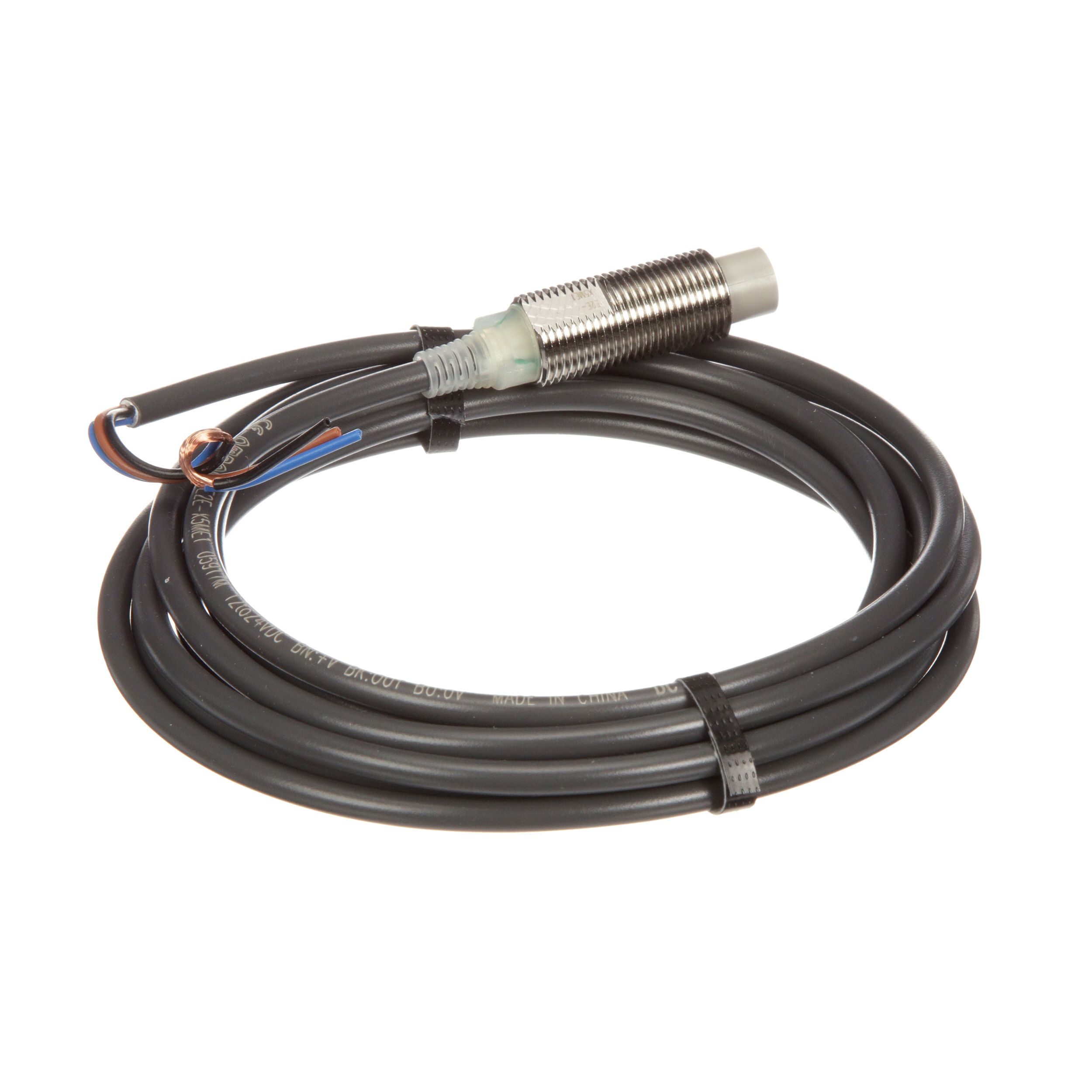

Threaded cylindrical inductive proximity sensor with a 5mm sensing distance and NPN output configuration. Features a 10V to 40V DC operating supply voltage range and a response frequency of 400Hz with a 5ms response time. Constructed with a brass body and rated IP67 for environmental protection, operating between -40°C and 85°C. Panel mountable with cable lead termination.
MountingPanel
Quick Jump:
Technical Specifications
Omron E2E-X5ME1 technical specifications.
General
| Body Material | Brass |
| Height | 21mm |
| Length | 48mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 40V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Voltage | 24V |
| Output Configuration | NPN |
| Output Type | NPN |
| Package Quantity | 1 |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| Response Frequency | 400Hz |
| Response Time | 5ms |
| RoHS Compliant | No |
| Sensing Distance | 5mm |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Unshielded |
| Termination | Cable Leads |
| Width | 21mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron E2E-X5ME1 Datasheet
Download the complete datasheet for Omron E2E-X5ME1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

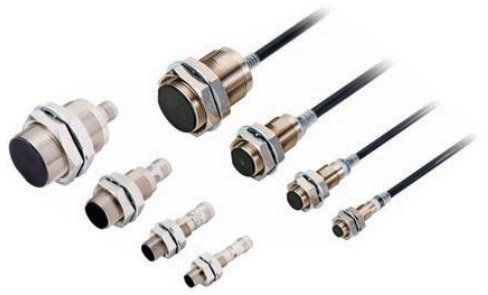

Product Images
