PNP inductive proximity switch with a 5mm sensing distance, designed for industrial automation. Features a brass M12 body, panel mount, and cable lead termination. Operates with a DC supply voltage range of 10V to 40V, a load current of 200mA, and a response frequency of 400Hz. Rated IP67 for environmental protection, with an operating temperature range of -40°C to 85°C.
MountingPanel
Quick Jump:
Technical Specifications
Omron E2E-X5MF1 technical specifications.
General
Body Material
Brass
Height
21mm
Length
48mm
Load Current
200mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
40V
Min Supply Voltage (DC)
10V
Max Supply Voltage
40V
Min Supply Voltage
10V
Mount
Panel
Operating Supply Voltage
24V
Output Configuration
PNP
Output Type
PNP
Package Quantity
1
Packaging
Bulk
Ratings
IP67
Reach SVHC Compliant
Unknown
Response Frequency
400Hz
RoHS Compliant
Yes
Sensing Distance
5mm
Sensing Method
Inductive
Series
E2E
Shielding
Unshielded
Termination
Cable Leads
Width
21mm
Compliance
RoHS
Compliant
Datasheet
Omron E2E-X5MF1 Datasheet
Download the complete datasheet for Omron E2E-X5MF1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

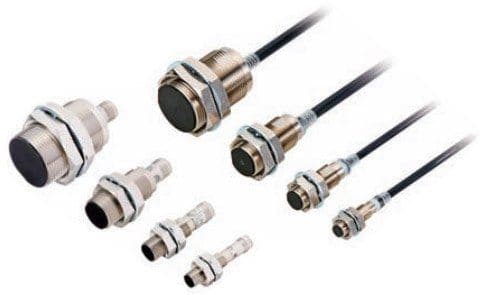

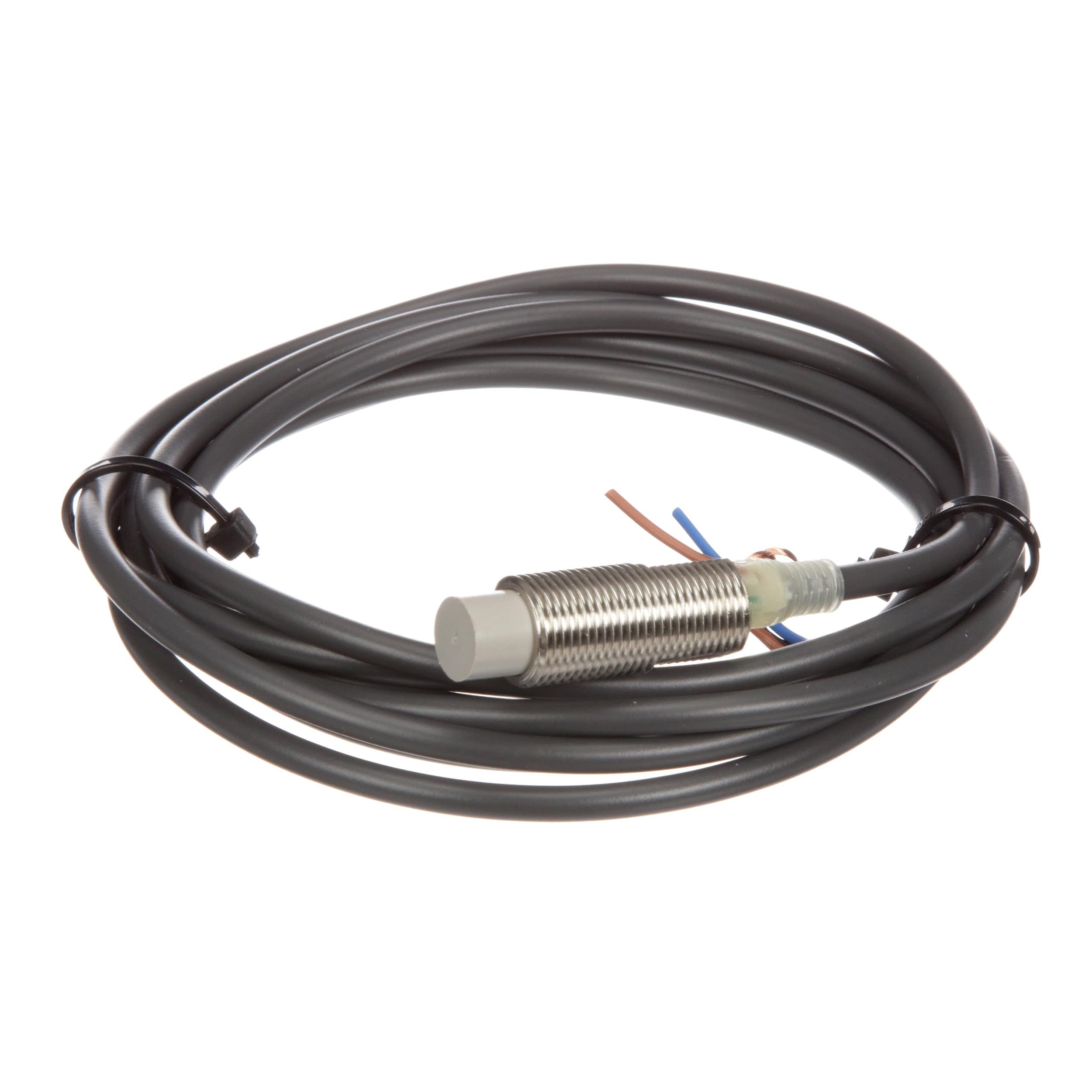

Product Images
