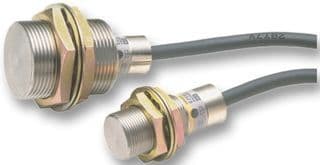

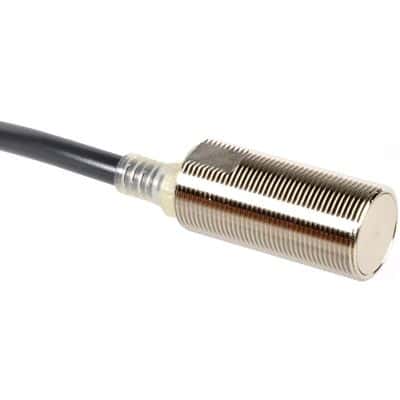

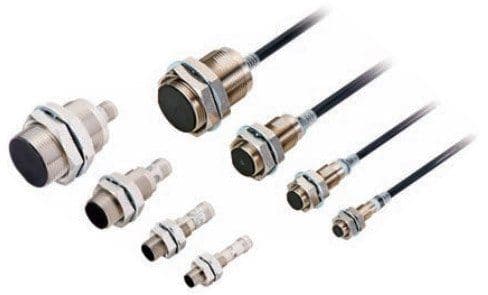

Inductive proximity sensor with a 7mm sensing distance and normally open (NO) output. Features a brass body, shielded design, and operates within a 10V to 30VDC supply voltage range. This sensor offers a response frequency of 500Hz and is rated IP67 for environmental protection. Mounting options include brackets, DIN rail, and panel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2E-X7D1-N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E2E-X7D1-N technical specifications.
| Body Material | Brass |
| Height | 29mm |
| Lead Free | Contains Lead |
| Lead Length | 2mm |
| Length | 55mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Brackets, DIN Rail, Panel |
| Nominal Supply Current | 13mA |
| Operating Supply Voltage | 24V |
| Output | NO |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Frequency | 500Hz |
| Sensing Distance | 7mm |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Shielded |
| Termination | Cable Leads |
| Width | 29mm |
| RoHS | Compliant |
