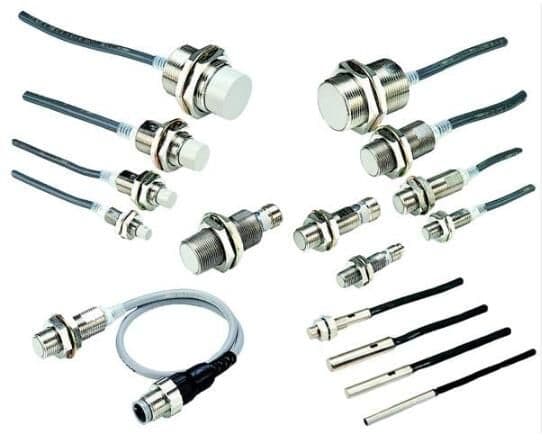

The Omron E2E-X8MD1S is an inductive proximity sensor with a sensing distance of 0.315inch and a switching current of 100mA. It operates within a temperature range of -25°C to 70°C and is rated for use with a supply voltage of 10V to 30V. The sensor is panel mount and has a package quantity of 1. It is not RoHS compliant and has a response frequency of 800Hz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2E-X8MD1S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Height | 21mm |
| Length | 47mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Voltage | 24V |
| Package Quantity | 1 |
| Ratings | IP67 |
| Response Frequency | 800Hz |
| RoHS Compliant | No |
| Sensing Distance | 0.315inch |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Unshielded |
| Switching Current | 100mA |
| Termination | Cable Leads |
| Width | 21mm |
| RoHS | Not Compliant |
