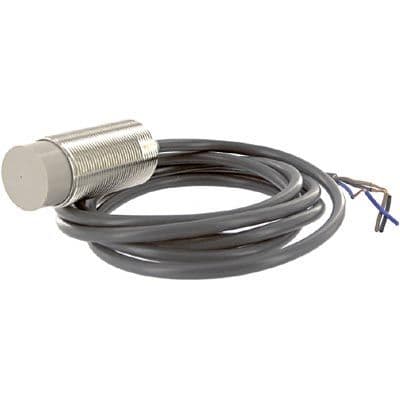

The Omron E2E2-X18MB1 is an inductive proximity sensor with a sensing distance of 18mm and a switching current of 200mA. It operates at a response frequency of 100Hz and is rated for use in environments with an operating temperature range of -40°C to 85°C. The sensor is designed for use with a supply voltage of 24V and has a PNP output configuration. It is packaged in a bulk package and has a termination of cable leads. The sensor is not radiation hardened and is unshielded.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2E2-X18MB1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Length | 70mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 55V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Voltage | 24V |
| Output Configuration | PNP |
| Output Type | PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67 |
| Response Frequency | 100Hz |
| Sensing Distance | 18mm |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Unshielded |
| Switching Current | 200mA |
| Termination | Cable Leads |
| RoHS | Compliant |
