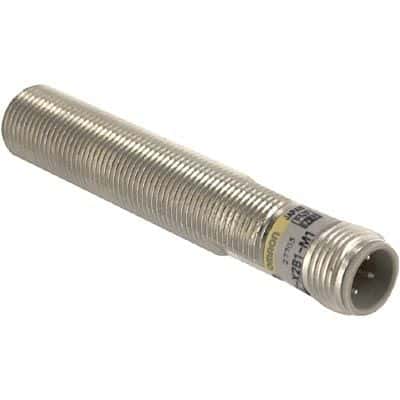

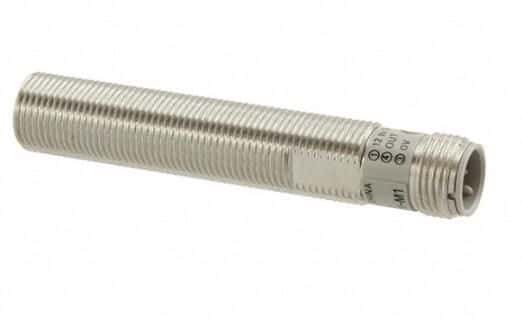

Inductive proximity sensor with a 2mm sensing distance, featuring a PNP output configuration. Operates on 10V to 55VDC supply voltage with a maximum switching current of 200mA and a response frequency of 1.5kHz. Constructed with a brass body and rated IP67 for environmental protection, it offers a wide operating temperature range from -40°C to 85°C. This shielded, panel-mount sensor utilizes a connector termination and is CE approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2E2-X2B1-M1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E2E2-X2B1-M1 technical specifications.
| Approvals | CE |
| Body Material | Brass |
| Height | 21mm |
| Length | 69mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 55V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 55V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Current | 13mA |
| Output Configuration | PNP |
| Output Type | PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Frequency | 1.5kHz |
| Sensing Distance | 2mm |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Shielded |
| Switching Current | 200mA |
| Termination | Connector |
| Width | 21mm |
| RoHS | Compliant |
