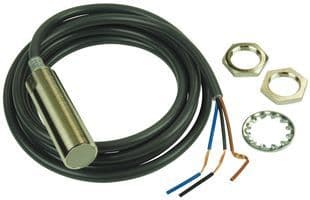

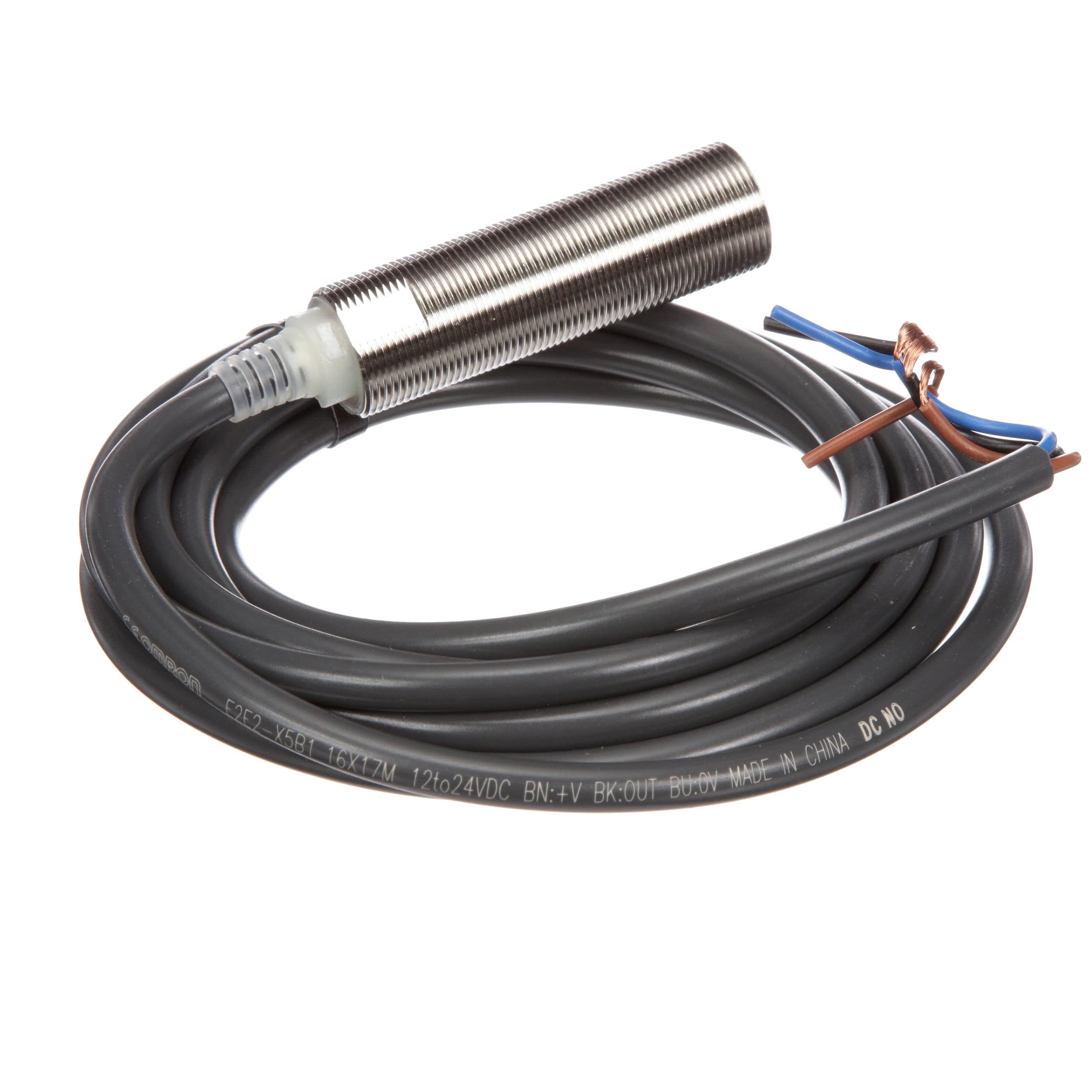

The Omron E2E2-X5B1 is an inductive proximity sensor with a PNP output configuration. It operates within a temperature range of -40°C to 85°C and can withstand a maximum supply voltage of 55V and a minimum supply voltage of 10V. The sensor has a sensing distance of 5mm and a response frequency of 600Hz. It is rated for IP67 and features shielded cable leads for reliable connections.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2E2-X5B1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Height | 29mm |
| Length | 77mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 55V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Current | 13mA |
| Output Configuration | PNP |
| Output Type | PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67 |
| Response Frequency | 600Hz |
| Sensing Distance | 5mm |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Shielded |
| Termination | Cable Leads |
| Width | 29mm |
| RoHS | Compliant |
