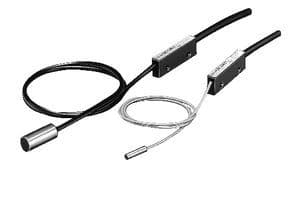

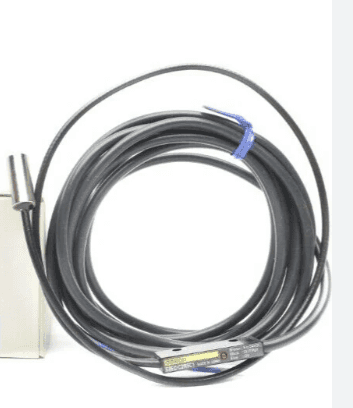

Inductive proximity sensor with an 8mm sensing distance and 2.5mm sensing range. Features a shielded, brass body with panel mount capability and cable lead termination. Operates within a 10-30V supply voltage range, with a typical 24V operating voltage and 100mA operating supply current. Offers NPN output configuration and a 1kHz response frequency, rated IP64 for environmental protection. Suitable for temperatures from -25°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2EC-C2R5C1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Height | 8mm |
| Length | 453mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Current | 100mA |
| Operating Supply Voltage | 24V |
| Output Configuration | NPN |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP64 |
| Response Frequency | 1kHz |
| RoHS Compliant | Yes |
| Sensing Distance | 2.5mm |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Shielded |
| Termination | Cable Leads |
| Width | 8mm |
| RoHS | Compliant |
