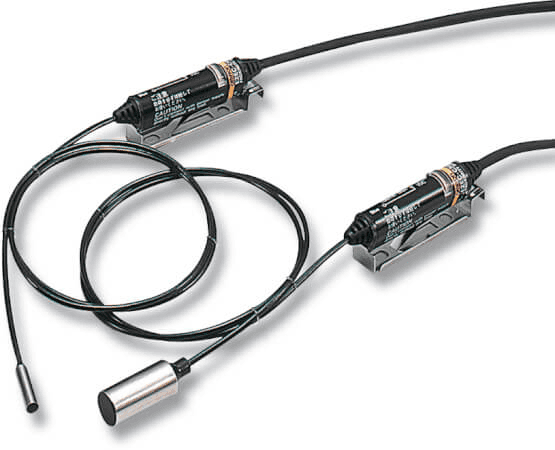

The Omron E2EC-CR8D2 is a proximity sensor with an inductive sensing method and a sensing distance of 0.8mm. It operates within a temperature range of -25°C to 70°C and has a response frequency of 1.5kHz. The sensor is rated for IP67 and is RoHS compliant. It is available in a shielded package with cable leads and is part of the E2E series.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2EC-CR8D2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Height | 10.7mm |
| Length | 459mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Current | 100mA |
| Operating Supply Voltage | 24V |
| Output Configuration | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67 |
| Response Frequency | 1.5kHz |
| RoHS Compliant | Yes |
| Sensing Distance | 0.8mm |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Shielded |
| Termination | Cable Leads |
| Width | 8mm |
| RoHS | Compliant |
