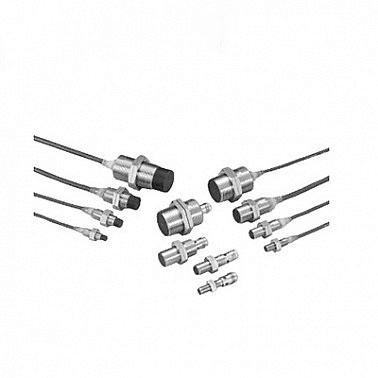

The Omron E2EM-X15B1-M1 is an inductive proximity sensor with a shielded design and PNP output configuration. It features a sensing distance of 15mm and is rated for operation in temperatures ranging from -25°C to 70°C. The sensor is compliant with RoHS regulations and has an IP67 rating for dust and water resistance. It is available in a single unit package with a panel mount configuration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2EM-X15B1-M1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Height | 42mm |
| Length | 60mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Output Configuration | PNP |
| Output Type | PNP |
| Package Quantity | 1 |
| Ratings | IP67 |
| Response Frequency | 100Hz |
| RoHS Compliant | Yes |
| Sensing Distance | 15mm |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Shielded |
| Termination | Connector |
| Width | 42mm |
| RoHS | Compliant |
Download the complete datasheet for Omron E2EM-X15B1-M1 to view detailed technical specifications.
