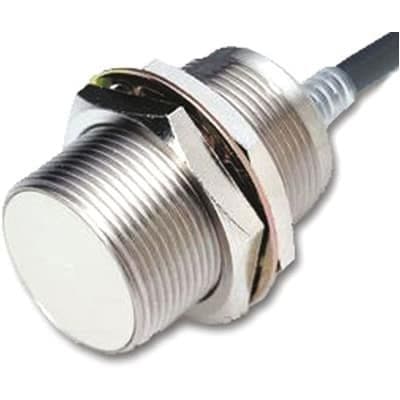

The E2EM-X2B1-M1 is an inductive proximity sensor from Omron with a stainless steel body, rated for operation between -25°C and 70°C. It has a sensing distance of 2mm and a switching current of 200mA. The sensor is shielded and meets IP67 ratings. It operates at a response frequency of 1.5kHz and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2EM-X2B1-M1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E2EM-X2B1-M1 technical specifications.
| Body Material | Stainless Steel |
| Height | 15mm |
| Length | 43mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Brackets, Panel |
| Operating Supply Voltage | 24V |
| Output Configuration | PNP |
| Output Type | PNP |
| Package Quantity | 1 |
| Ratings | IP67 |
| Response Frequency | 1.5kHz |
| RoHS Compliant | Yes |
| Sensing Distance | 2mm |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Shielded |
| Switching Current | 200mA |
| Termination | Connector |
| Width | 15mm |
| RoHS | Compliant |
Download the complete datasheet for Omron E2EM-X2B1-M1 to view detailed technical specifications.
