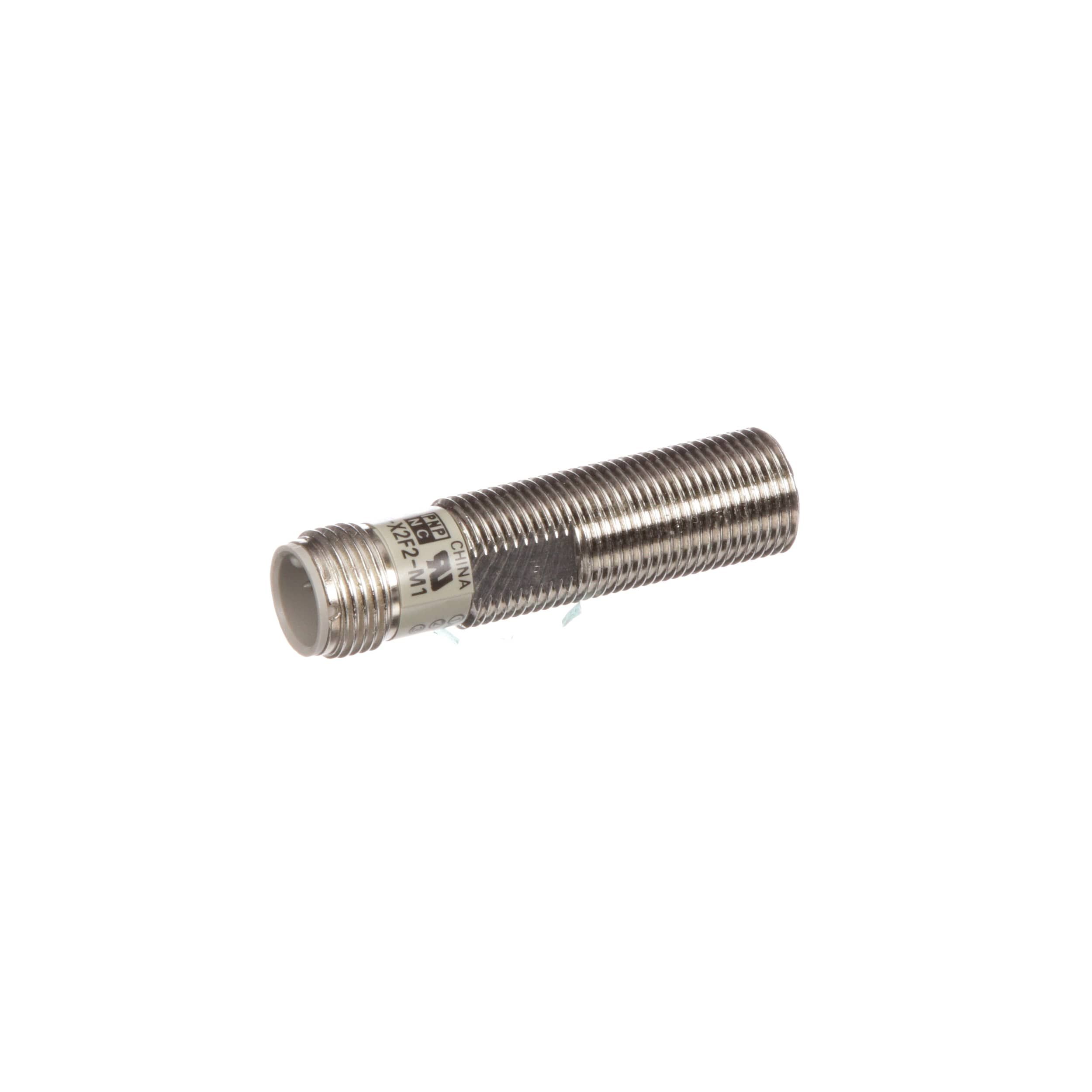

The Omron E2EX2F2M1 is a PNP proximity sensor with a sensing distance of 2mm and a sensing method of inductive sensing. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The sensor is rated for IP67 and has a response frequency of 1.5kHz. It is a shielded, connector-terminated device with a package quantity of 1.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2EX2F2M1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Height | 21mm |
| Length | 48mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 10V |
| Mount | Flush, Panel |
| Output Configuration | PNP |
| Output Type | PNP |
| Package Quantity | 1 |
| Ratings | IP67 |
| Response Frequency | 1.5kHz |
| Sensing Distance | 2mm |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Shielded |
| Termination | Connector |
| Width | 21mm |
| RoHS | Compliant |
Download the complete datasheet for Omron E2EX2F2M1 to view detailed technical specifications.
