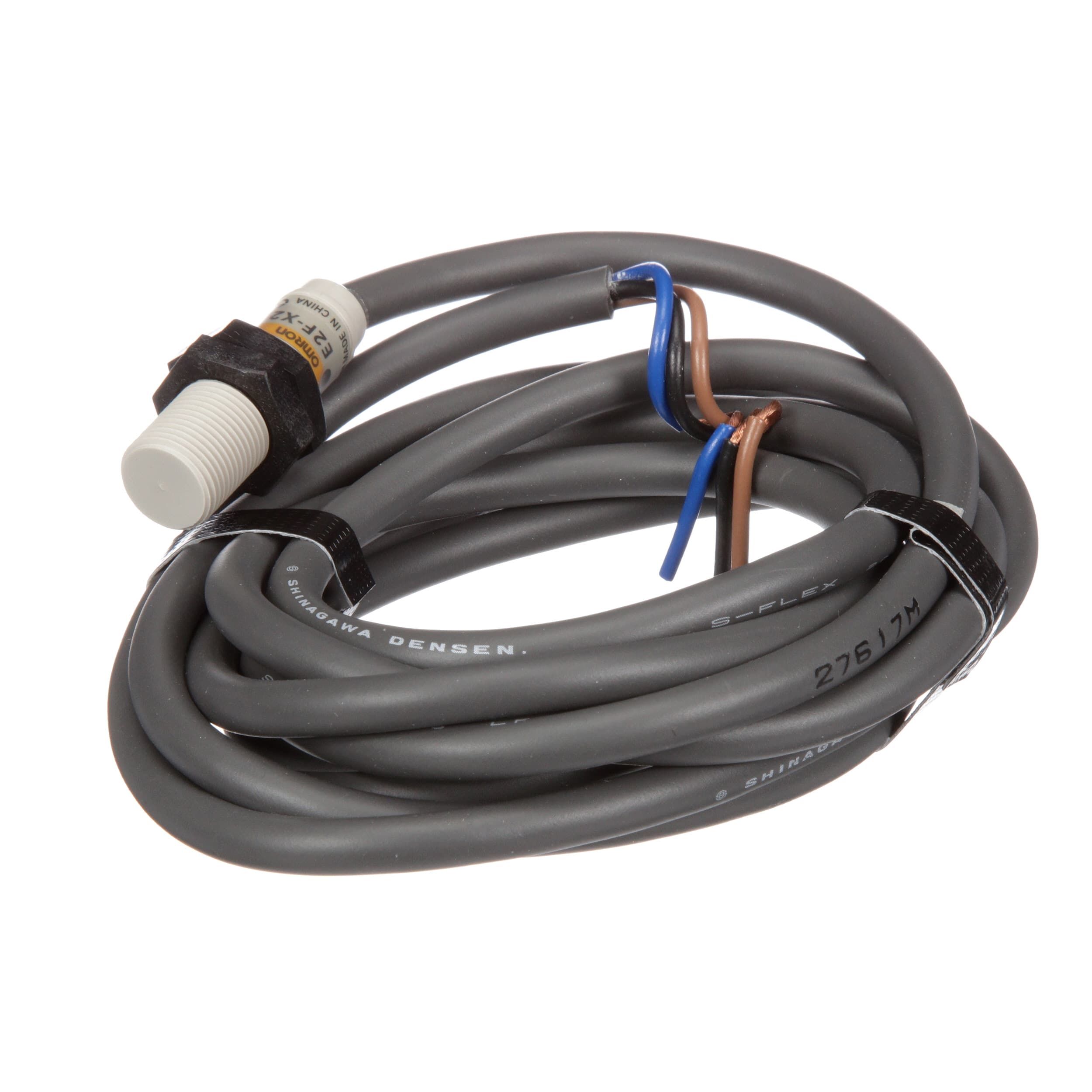

The Omron E2F-X2E1 is a proximity sensor with a sensing method of inductive sensing and a sensing distance of 2mm. It has a switching current of 200mA and a response frequency of 1.5kHz. The sensor is rated for operation between -25°C and 70°C and is supplied with a voltage between 10V and 30V. It is available in a bulk packaging with a shielded cable lead termination and is suitable for use in IP68 environments.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2F-X2E1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Plastic |
| Length | 38mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Brackets, DIN Rail, Panel |
| Output Configuration | NPN |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP68 |
| Response Frequency | 1.5kHz |
| RoHS Compliant | No |
| Sensing Distance | 2mm |
| Sensing Method | Inductive |
| Series | E2F |
| Shielding | Shielded |
| Switching Current | 200mA |
| Termination | Cable Leads |
| RoHS | Not Compliant |
