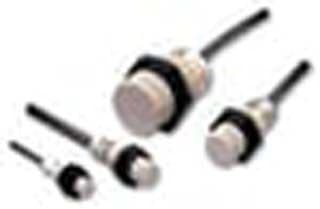

Plastic M18 inductive proximity sensor with a 5mm sensing distance. Features a PNP normally open output configuration and operates within a 10V to 30V supply voltage range, with a typical 24V operating voltage. Rated IP68 for robust environmental protection, this shielded sensor offers a 600Hz response frequency and a wide operating temperature range of -25°C to 70°C. Panel mountable with cable lead termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2F-X5F1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Plastic |
| Height | 24mm |
| Length | 47mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Current | 17mA |
| Operating Supply Voltage | 24V |
| Output Configuration | PNP |
| Output Type | PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP68 |
| Response Frequency | 600Hz |
| RoHS Compliant | No |
| Sensing Distance | 5mm |
| Sensing Method | Inductive |
| Series | E2F |
| Shielding | Shielded |
| Termination | Cable Leads |
| Width | 24mm |
| RoHS | Not CompliantNo |
