Inductive proximity sensor with a 5mm sensing distance and stainless steel body. Features a flush, panel mount design and operates on 10-30VDC with a 200mA switching current. Offers PNP output configuration and a response frequency of 100Hz. Rated IP67 for environmental protection, with an operating temperature range of -25°C to 70°C.
MountingFlush, Panel
Quick Jump:
Technical Specifications
Omron E2FM-X5B1-M1 technical specifications.
General
Body Material
Stainless Steel
Length
56mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Supply Voltage (DC)
30V
Min Supply Voltage (DC)
10V
Max Supply Voltage
30V
Min Supply Voltage
10V
Mount
Flush, Panel
Operating Supply Current
10mA
Operating Supply Voltage
24V
Output Configuration
PNP
Output Type
PNP, NPN
Package Quantity
1
Packaging
Bulk
Ratings
IP67
Reach SVHC Compliant
Unknown
Response Frequency
100Hz
RoHS Compliant
Yes
Sensing Distance
0.197inch
Sensing Method
Inductive
Series
E2F
Shielding
Shielded
Switching Current
200mA
Termination
Connector
Compliance
RoHS
Compliant
Datasheet
Omron E2FM-X5B1-M1 Datasheet
Download the complete datasheet for Omron E2FM-X5B1-M1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

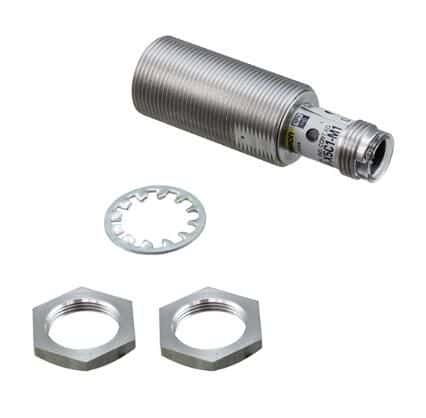

Product Images
