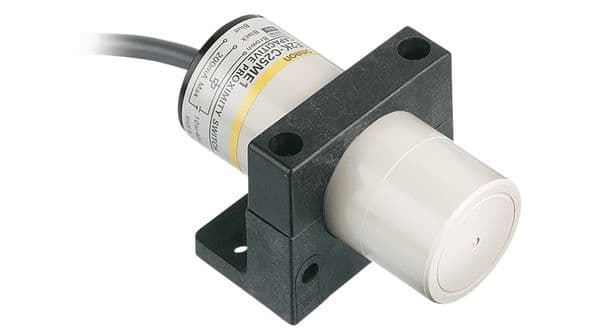

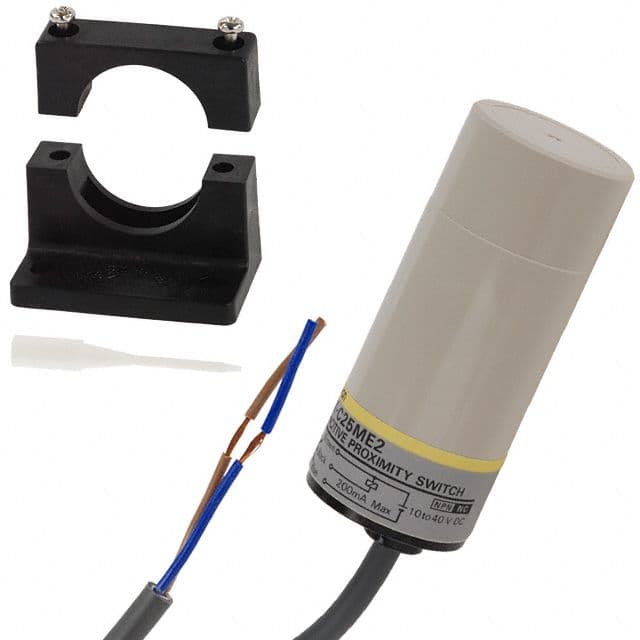

Capacitive proximity sensor with a 25mm sensing distance. Features a plastic ABS body, 2m cable leads, and a 200mA load current. Operates within a 10V to 40V supply voltage range, with a typical 24V operating supply voltage. Offers a normally open (NO) output and a response frequency of 10Hz. Rated IP66 for environmental protection, with an operating temperature range of -25°C to 70°C. Mountable via brackets or panel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2K-C25MY1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Plastic |
| Height | 34mm |
| Lead Free | Lead Free |
| Lead Length | 2m |
| Length | 82mm |
| Load Current | 200mA |
| Material | ABS |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 10V |
| Mount | Brackets, Panel |
| Operating Supply Current | 2mA |
| Operating Supply Voltage | 24V |
| Output | NO |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66 |
| Reach SVHC Compliant | Unknown |
| Response Frequency | 10Hz |
| RoHS Compliant | Yes |
| Sensing Distance | 25mm |
| Sensing Method | Capacitive |
| Series | E2K |
| Shielding | Unshielded |
| Termination | Cable Leads |
| Width | 34mm |
| RoHS | Not Compliant |
