Capacitive proximity sensor with a 10mm sensing distance and NPN, Normally Open (NO) output configuration. Features a 10V to 30VDC operating supply voltage range and a 100Hz response frequency. Constructed with a plastic body, it measures 50mm in length, 20mm in width, and 10mm in height, with 2m cable leads for termination. Rated IP66 for environmental protection, it operates between -10°C and 55°C and is RoHS compliant. Mounting options include surface mount, brackets, DIN rail, and screw.
MountingSurface Mount, Brackets, DIN Rail, Screw
Quick Jump:
Technical Specifications
Omron E2K-F10MC1 technical specifications.
General
Body Material
Plastic
Height
10mm
Lead Length
2m
Length
50mm
Max Operating Temperature
55°C
Min Operating Temperature
-10°C
Max Supply Voltage (DC)
30V
Min Supply Voltage (DC)
10V
Max Supply Voltage
30V
Min Supply Voltage
10V
Mount
Surface Mount, Brackets, DIN Rail, Screw
Operating Supply Current
10mA
Operating Supply Voltage
24V
Output Configuration
NPN
Output Type
NPN, NPN, NO
Package Quantity
1
Packaging
Bulk
Ratings
IP66
Reach SVHC Compliant
Unknown
Response Frequency
100Hz
RMS Current (Irms)
100mA
RoHS Compliant
Yes
Sensing Distance
10mm
Sensing Method
Capacitive
Series
E2K
Shielding
Unshielded
Termination
Cable Leads
Touchscreen
Capacitive
Width
20mm
Compliance
RoHS
Compliant
Datasheet
Omron E2K-F10MC1 Datasheet
Download the complete datasheet for Omron E2K-F10MC1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

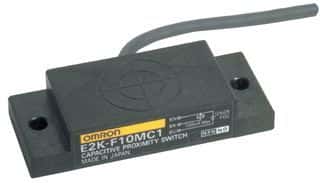

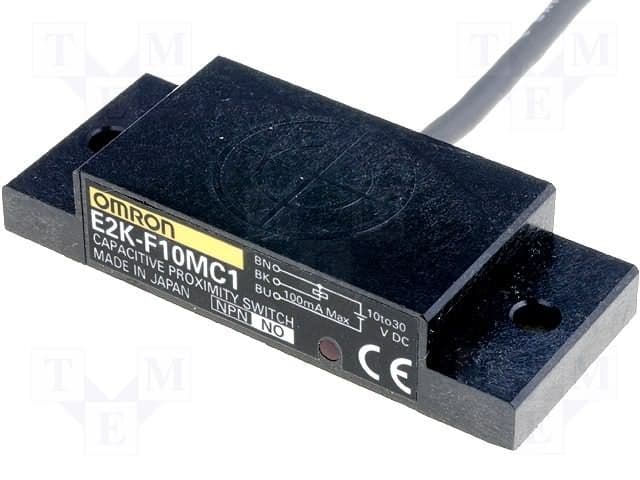

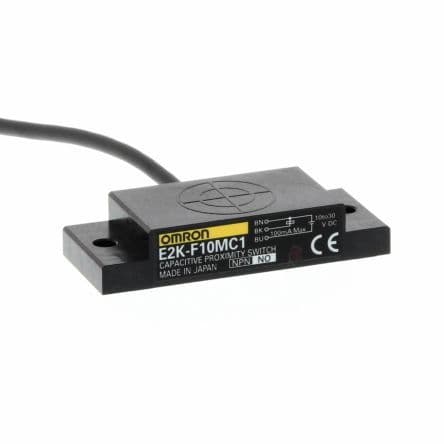

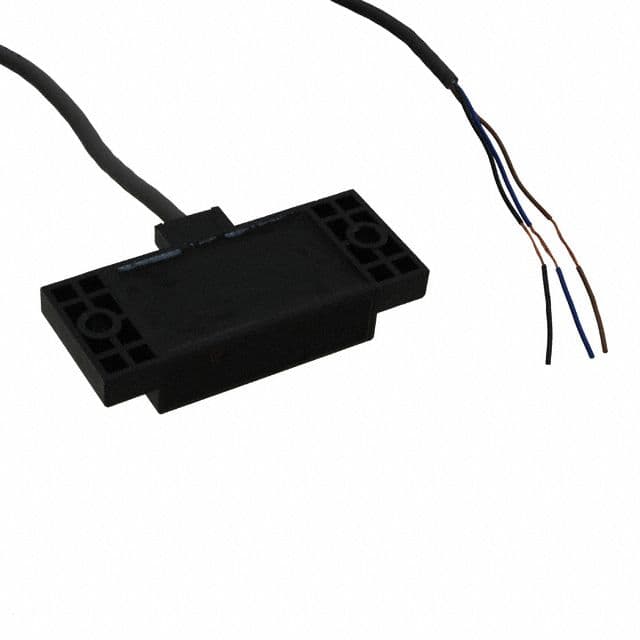

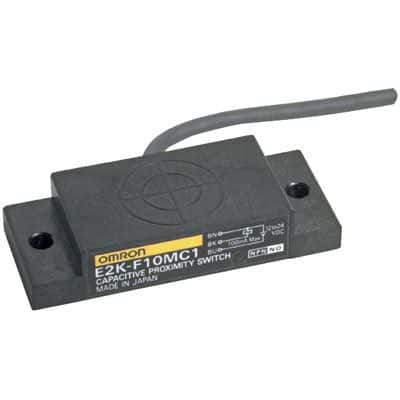

Product Images
