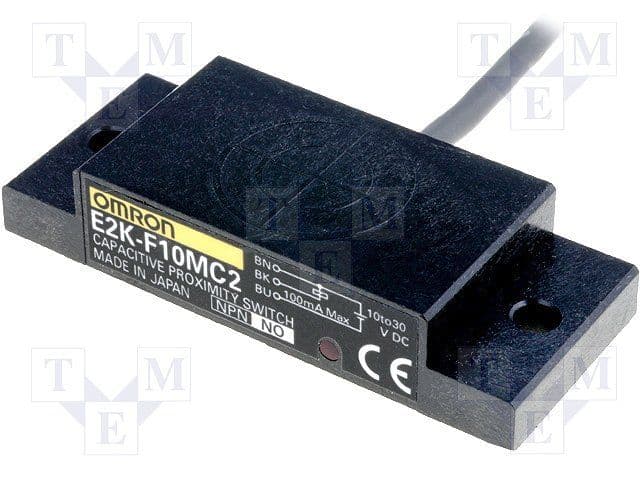

Capacitive proximity sensor with a plastic body, featuring a 10mm sensing distance and NPN output configuration. Operates with a DC supply voltage range of 10V to 30V, consuming 10mA operating current. Offers a response frequency of 100Hz and a switching current of 100mA. Rated IP64 and IP66, this unshielded sensor is RoHS compliant and suitable for mounting via brackets, DIN rail, or screw.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2K-F10MC2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E2K-F10MC2 technical specifications.
| Body Material | Plastic |
| Depth | 10.1mm |
| Height | 10mm |
| Length | 50mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Brackets, DIN Rail, Screw |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 24V |
| Output Configuration | NPN |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP64, IP66 |
| Reach SVHC Compliant | Unknown |
| Response Frequency | 100Hz |
| RoHS Compliant | Yes |
| Sensing Distance | 10mm |
| Sensing Method | Capacitive |
| Series | E2K |
| Shielding | Unshielded |
| Switching Current | 100mA |
| Termination | Cable Leads |
| Touchscreen | Capacitive |
| Width | 20mm |
| RoHS | Compliant |
Download the complete datasheet for Omron E2K-F10MC2 to view detailed technical specifications.
