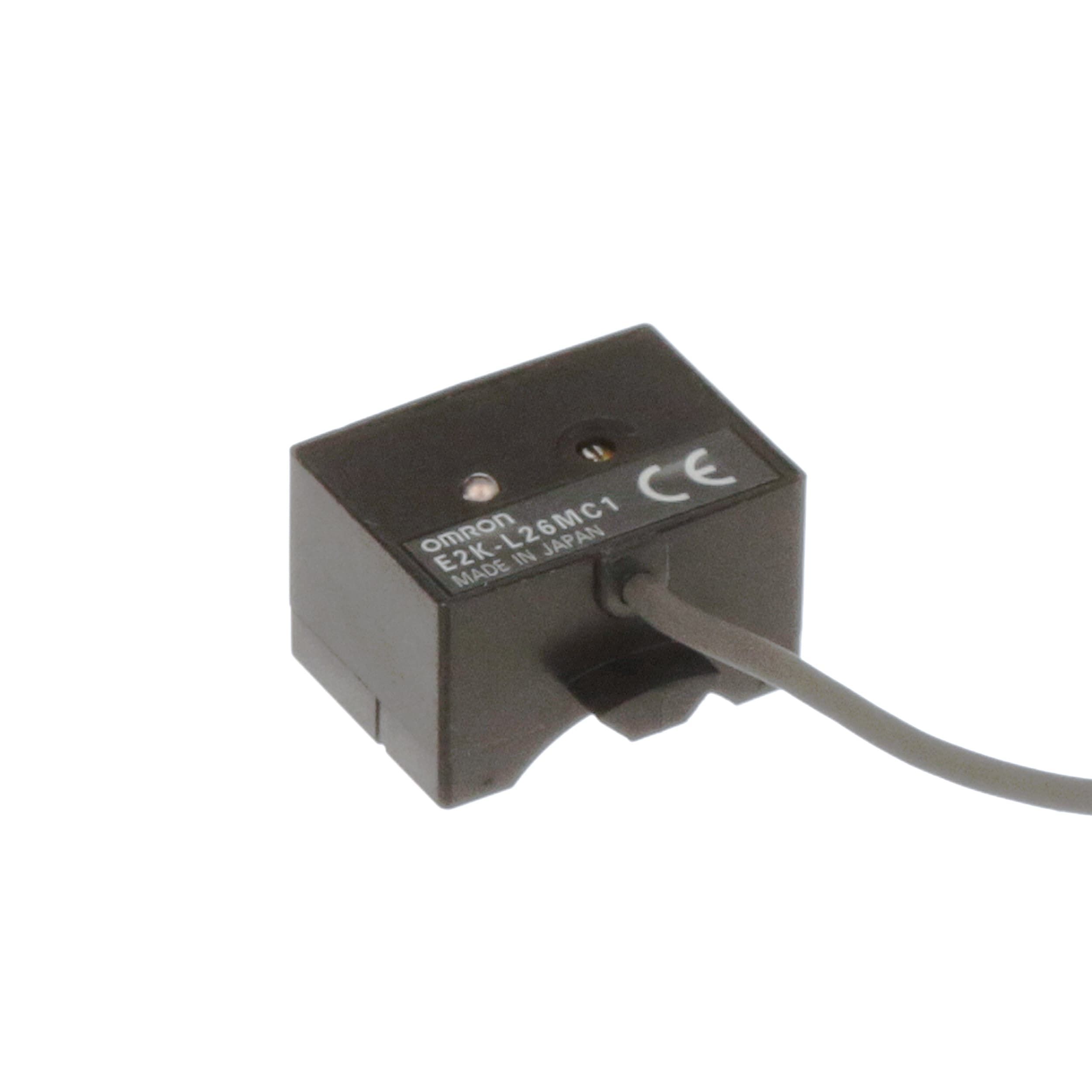

Capacitive level sensor with NPN output, designed for 12-24VDC operation and a maximum output current of 100mA. Features a 26mm sensing distance and a plastic body, measuring 43mm in length, 24mm in width, and 20mm in depth. Operates within a temperature range of 0°C to 55°C and offers IP66 ingress protection. This RoHS compliant component utilizes cable lead termination and is unshielded.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2K-L26MC1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Plastic |
| Depth | 20mm |
| Height | 20mm |
| Length | 43mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 12V |
| Operating Frequency | N/A |
| Operating Supply Current | 12mA |
| Output Current | 100mA |
| Output Type | NPN |
| Package Quantity | 1 |
| Ratings | IP66 |
| RoHS Compliant | Yes |
| Sensing Distance | 26mm |
| Sensing Method | Capacitive |
| Series | E2K |
| Shielding | Unshielded |
| Termination | Cable Leads |
| Width | 24mm |
| RoHS | Not Compliant |
Download the complete datasheet for Omron E2K-L26MC1 to view detailed technical specifications.
