Capacitive proximity sensor with a 4mm sensing distance and PNP output. Features a plastic cylindrical body, IP66 rating, and operates within a 10-30V DC supply voltage range. This unshielded sensor offers a response frequency of 100Hz and is RoHS compliant. Termination is via cable leads, and it is designed for panel mounting.
MountingPanel
Quick Jump:
Technical Specifications
Omron E2K-X4MF1 technical specifications.
General
| Body Material | Plastic |
| Height | 19.62mm |
| Lead Free | Lead Free |
| Length | 80mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Current | 15mA |
| Operating Supply Voltage | 24V |
| Output Configuration | PNP |
| Output Type | NPN, NO, PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66 |
| Response Frequency | 100Hz |
| RoHS Compliant | Yes |
| Sensing Distance | 4mm |
| Sensing Method | Capacitive |
| Series | E2K |
| Shielding | Unshielded |
| Termination | Cable Leads |
| Touchscreen | Capacitive |
| Width | 19.62mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron E2K-X4MF1 Datasheet
Download the complete datasheet for Omron E2K-X4MF1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

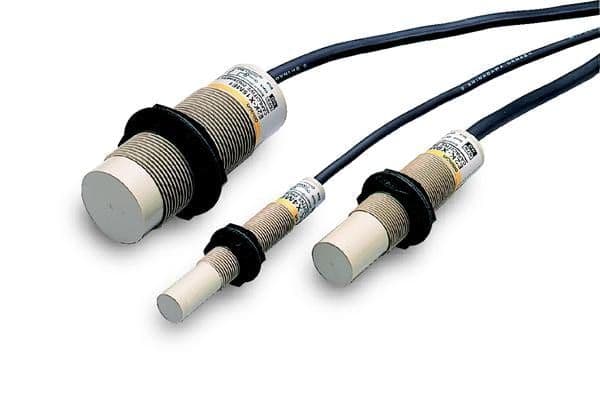

Product Images
