Capacitive proximity sensor with an 8mm sensing distance and NPN output configuration. Features a plastic, unshielded cylindrical body, 29mm height, 29mm width, and 80mm length, designed for panel mounting. Operates within a temperature range of -25°C to 70°C, with a supply voltage range of 10V to 30V and a typical operating voltage of 24V. Rated IP66 for environmental protection and includes cable leads for termination. This lead-free, RoHS-compliant component offers a response frequency of 100Hz.
MountingPanel
Quick Jump:
Technical Specifications
Omron E2K-X8ME1 technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Plastic |
| Height | 29mm |
| Lead Free | Lead Free |
| Length | 80mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Current | 15mA |
| Operating Supply Voltage | 24V |
| Output Configuration | NPN |
| Output Type | NPN |
| Package Quantity | 1 |
| Ratings | IP66 |
| Response Frequency | 100Hz |
| RoHS Compliant | Yes |
| Sensing Distance | 8mm |
| Sensing Method | Capacitive |
| Series | E2K |
| Shielding | Unshielded |
| Termination | Cable Leads |
| Touchscreen | Capacitive |
| Width | 29mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron E2K-X8ME1 Datasheet
Download the complete datasheet for Omron E2K-X8ME1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

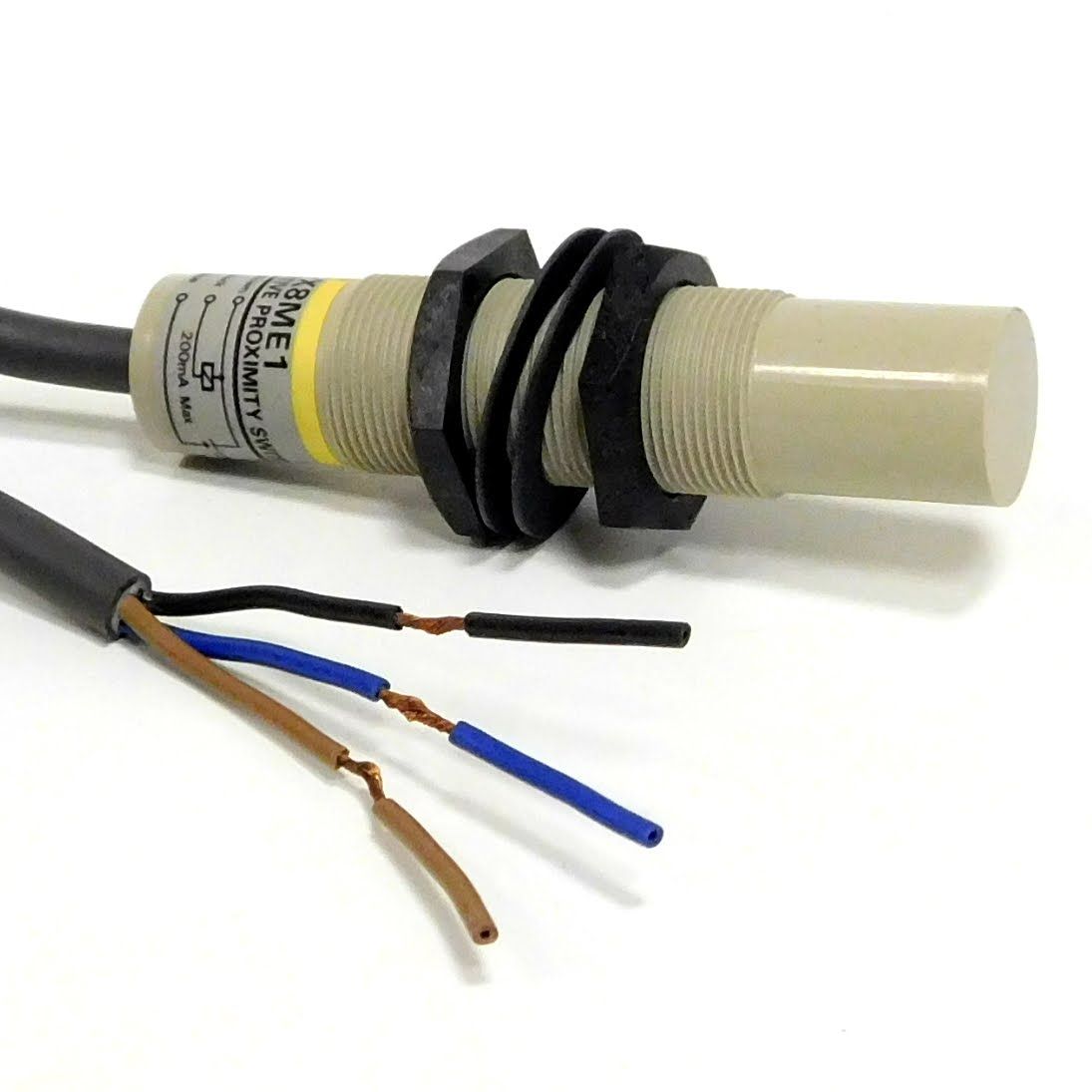

Product Images
