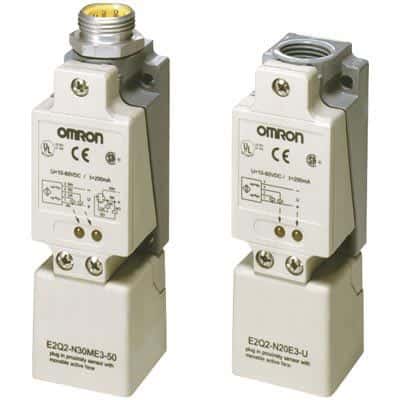

Inductive proximity sensor with a 15mm sensing distance, featuring a shielded plastic body and SCR output. Operates from 20V to 253VAC with a maximum switching current of 500mA and a response frequency of 20Hz. Designed for bracket mounting, this sensor offers a wide operating temperature range of -25°C to 70°C and is rated IP67 for environmental protection. Approvals include UL and CSA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2Q2-N15Y4-U datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E2Q2-N15Y4-U technical specifications.
| Approvals | UL, CSA |
| Body Material | Plastic |
| Package/Case | Module |
| Depth | 40mm |
| Height | 118mm |
| Length | 40mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Brackets |
| Number of Positions | 5 |
| Operating Supply Current | 20mA |
| Operating Supply Voltage | 30V |
| Output | SCR |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Response Frequency | 20Hz |
| Sensing Distance | 15mm |
| Sensing Method | Inductive |
| Series | E2Q |
| Shielding | Shielded |
| Switching Current | 500mA |
| Termination | Connector |
| Width | 40mm |
| RoHS | Compliant |
