Through-beam photoelectric sensor with NPN output, offering a 7-meter sensing distance. Features include a 2.5ms response time, 100mA output current, and selectable Light-ON/Dark-ON operation. This panel-mount sensor operates on 10-30V DC with a 24V nominal supply voltage and is rated IP67 and IP66 for environmental protection. Approvals include UL, CSA, and CE.
MountingPanel
Quick Jump:
Technical Specifications
Omron E3F2-7C4 technical specifications.
General
Approvals
UL, CSA, CE
Diameter
24mm
Height
64.9mm
Lead Free
Contains Lead
Length
24mm
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Supply Voltage (DC)
30V
Min Supply Voltage (DC)
10V
Max Supply Voltage
30V
Min Supply Voltage
10V
Mount
Panel
Operating Supply Voltage
24V
Output Configuration
Dark-On
Output Current
100mA
Output Type
NPN
Package Quantity
1
Ratings
IP67, IP66
Reach SVHC Compliant
Unknown
Response Time
2.5ms
RoHS Compliant
Yes
Sensing Distance
275.591inch
Series
E3F2
Touchscreen
Infrared (IR)
Weight
120g
Width
24mm
Compliance
RoHS
Not Compliant
Datasheet
Omron E3F2-7C4 Datasheet
Download the complete datasheet for Omron E3F2-7C4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

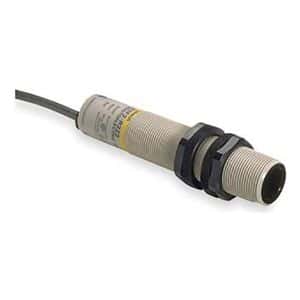

Product Images
