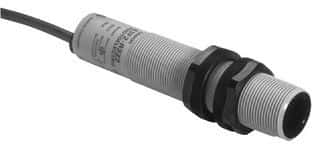

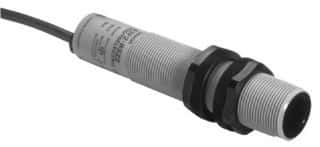

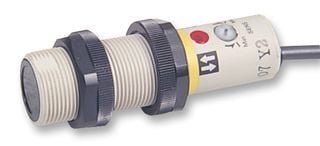

NPN photoelectric sensor with a sensing distance of 3.937 inches. Features diffuse-reflective sensing, light-ON/dark-ON output configuration, and a maximum output current of 100mA. Operates on a DC supply voltage range of 10V to 30V, with a typical operating voltage of 24V. Constructed with an ABS body, it offers IP67 and IP66 ratings for environmental protection and a response time of 2.5ms. The sensor is RoHS compliant and includes a 2m lead.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3F2-DS10C4-N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3F2-DS10C4-N technical specifications.
| Approvals | CE |
| Body Material | ABS |
| Package/Case | Axial |
| Diameter | 16.4mm |
| Height | 64.9mm |
| Lead Free | Contains Lead |
| Lead Length | 2m |
| Length | 24mm |
| Material | ABS |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Max Voltage Rating (DC) | 30V |
| Mount | Panel |
| Operating Supply Voltage | 24V |
| Output Configuration | Dark-On |
| Output Current | 100mA |
| Output Type | NPN |
| Package Quantity | 1 |
| Ratings | IP67, IP66 |
| Reach SVHC Compliant | Unknown |
| Response Time | 2.5ms |
| RoHS Compliant | Yes |
| Sensing Distance | 3.937inch |
| Series | E3F2 |
| Touchscreen | Infrared (IR) |
| Width | 24mm |
| RoHS | Not Compliant |
