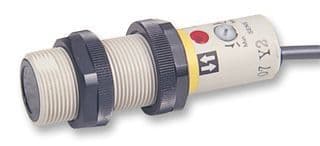

The Omron E3F2-R4B4 is a photoelectric sensor with a through-beam configuration, rated for operation in environments with an IP67 rating. It can sense objects at a distance of up to 4 meters. The sensor's operating temperature range spans from -25°C to 55°C. It operates on a supply voltage between 10V and 30V, with a maximum supply current of 30mA. The sensor is packaged in bulk and features a PNP output configuration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3F2-R4B4 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3F2-R4B4 technical specifications.
| Load Current | 100mA |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Current | 30mA |
| Operating Supply Voltage | 24V |
| Output Configuration | Dark-On |
| Output Current | 100mA |
| Output Type | PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Sensing Distance | 4m |
| Series | E3F2 |
| RoHS | Compliant |
