Technical Specifications
Omron E3F2-R4C4-P1 technical specifications.
General
Height
24mm
Length
73mm
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Supply Voltage (DC)
30V
Min Supply Voltage (DC)
10V
Max Supply Voltage
30V
Min Supply Voltage
10V
Mount
Panel
Operating Supply Voltage
24V
Output Configuration
Dark-On
Output Current
100mA
Output Type
NPN
Package Quantity
1
Ratings
IP66, IP67
Response Time
1ms
Sensing Distance
4m
Series
E3F2
Termination
Connector
Width
24mm
Compliance
RoHS
Compliant
Datasheet
Omron E3F2-R4C4-P1 Datasheet
Download the complete datasheet for Omron E3F2-R4C4-P1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

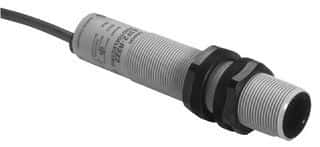

Product Images
