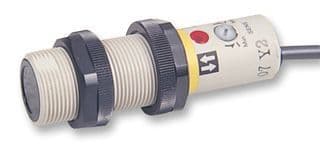

The Omron E3F2DS10B4N is a general sensor with a maximum operating temperature of 55°C and a minimum operating temperature of -25°C. It operates at a supply voltage of 24V and has a maximum output current of 100mA. The sensor is rated for IP67 and features a response time of 2.5ms. It is mounted on a panel and uses an optical sensing method with a sensing distance of 3.937inch.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3F2DS10B4N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Load Current | 100mA |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 100mA |
| Max Supply Voltage (AC) | 240V |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 10V |
| Mount | Panel |
| Operating Supply Voltage | 24V |
| Output Configuration | Dark-On |
| Output Current | 100mA |
| Output Type | PNP |
| Package Quantity | 1 |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Time | 2.5ms |
| Sensing Distance | 3.937inch |
| Sensing Method | Optical |
| Series | E3F2 |
| RoHS | Compliant |
Download the complete datasheet for Omron E3F2DS10B4N to view detailed technical specifications.
