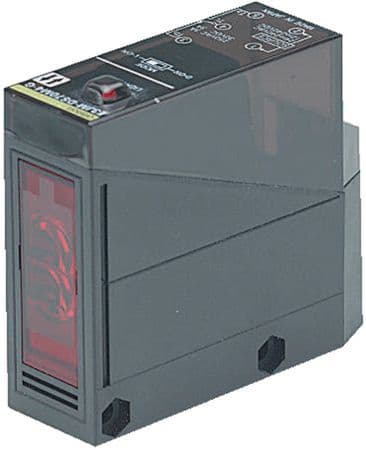

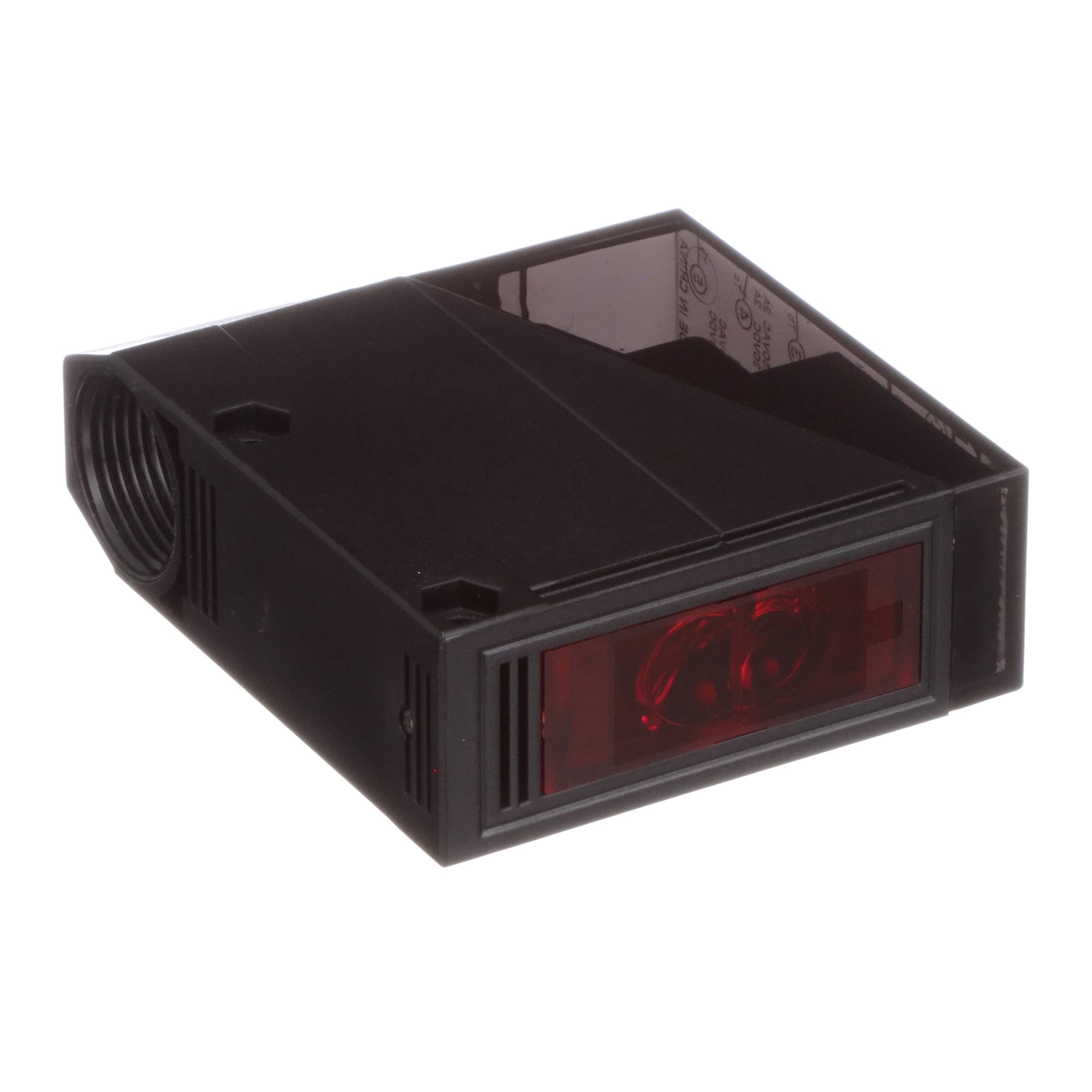

This photoelectric sensor features a diffuse-reflective sensing method with a 27.559-inch sensing distance. It offers a relay output with SPDT throw configuration and Dark-On output operation. The sensor operates on AC supply voltages from 2.412kV to 240.24kV or DC supply voltages from 12V to 240V. Rated IP66, it is RoHS compliant and designed for screw mounting with terminal block termination. Operating temperature range is -25°C to 55°C, with a response time of 30ms.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3JM-DS70M4-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3JM-DS70M4-G technical specifications.
| Height | 65mm |
| Length | 75mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (AC) | 240.24kV |
| Min Supply Voltage (AC) | 2.412kV |
| Max Supply Voltage (DC) | 240V |
| Min Supply Voltage (DC) | 12V |
| Max Supply Voltage | 240V |
| Min Supply Voltage | 12V |
| Mount | Screw |
| Output Configuration | Dark-On |
| Output Type | RELAY |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66 |
| Reach SVHC Compliant | Unknown |
| Response Time | 30ms |
| RoHS Compliant | Yes |
| Sensing Distance | 27.559inch |
| Sensing Method | Optical |
| Series | E3JM |
| Termination | Terminal Block |
| Throw Configuration | SPDT |
| Width | 25mm |
| RoHS | Compliant |
