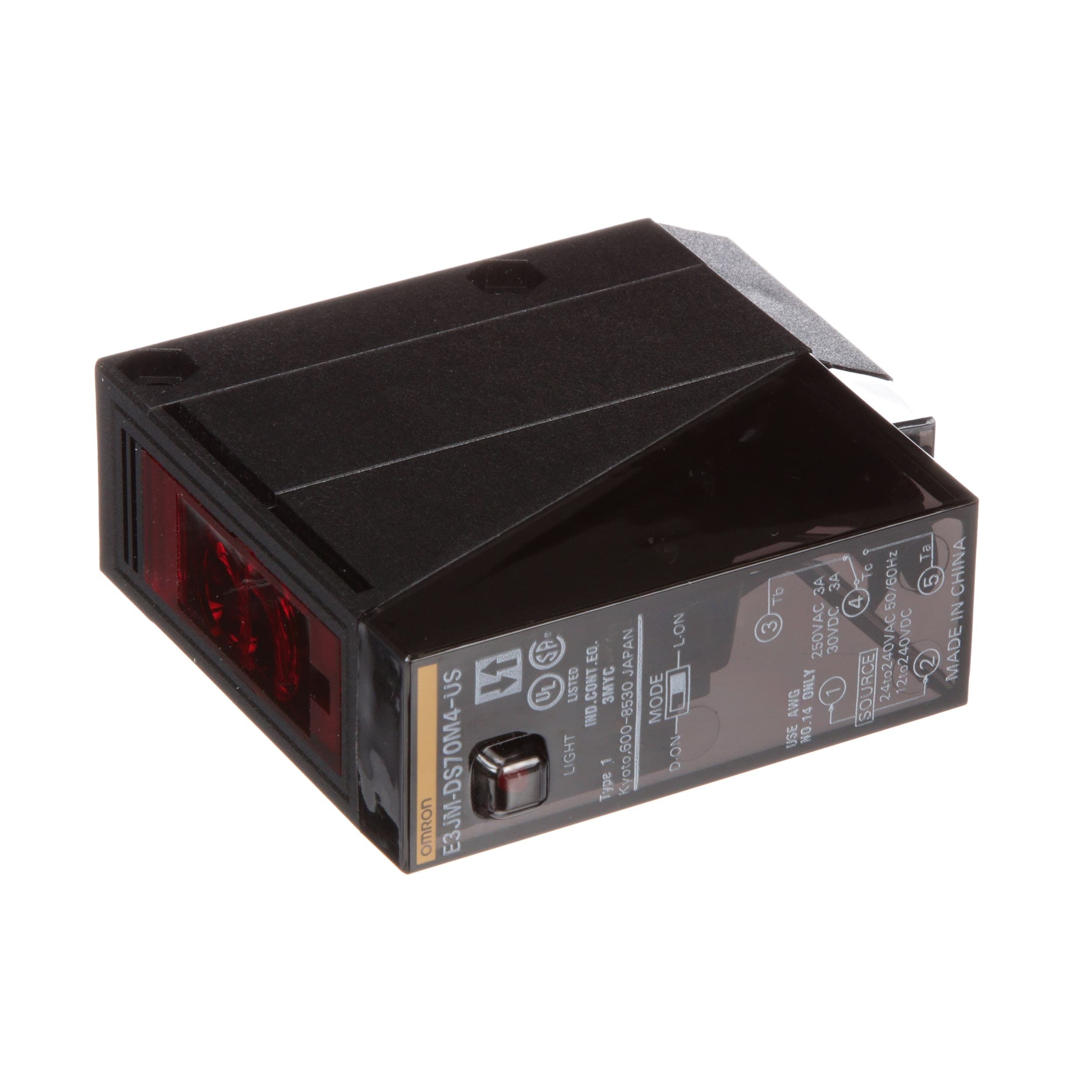

Photoelectric sensor with a sensing distance of 27.559 inches, featuring a relay output and Dark-On configuration. Operating voltage ranges from 12V to 240V AC/DC, with a response time of 30ms. This component is IP66 rated, RoHS compliant, and operates within a temperature range of -25°C to 55°C. Mounting options include brackets and screw, with cable termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3JM-DS70M4-US datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3JM-DS70M4-US technical specifications.
| Approvals | UL |
| Height | 65mm |
| Length | 65mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (AC) | 240.24kV |
| Min Supply Voltage (AC) | 2.412kV |
| Max Supply Voltage (DC) | 240V |
| Min Supply Voltage (DC) | 12V |
| Max Supply Voltage | 240V |
| Min Supply Voltage | 12V |
| Mount | Brackets, Screw |
| Output Configuration | Dark-On |
| Output Type | RELAY |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66 |
| Reach SVHC Compliant | Unknown |
| Response Time | 30ms |
| RoHS Compliant | Yes |
| Sensing Distance | 27.559inch |
| Series | E3JM |
| Termination | Cable |
| Weight | 4.6oz |
| Width | 24.9mm |
| RoHS | Compliant |
