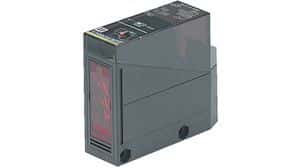

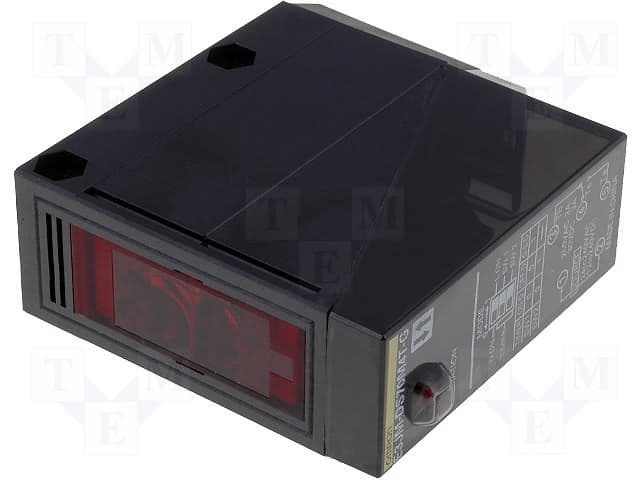

The Omron E3JM-DS70M4T-G is a relay with a dark-on output configuration, operating within a 12V to 240V supply voltage range. It has a maximum operating temperature of 55°C and a response time of 30ms. The relay is rated for IP66 and is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3JM-DS70M4T-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3JM-DS70M4T-G technical specifications.
| Height | 65mm |
| Length | 75mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 240V |
| Min Supply Voltage (DC) | 12V |
| Operating Supply Voltage | 240V |
| Output Configuration | Dark-On |
| Output Type | RELAY |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66 |
| Reach SVHC Compliant | Unknown |
| Response Time | 30ms |
| RoHS Compliant | Yes |
| Sensing Distance | 27.559inch |
| Series | E3JM |
| Width | 25mm |
| RoHS | Compliant |
