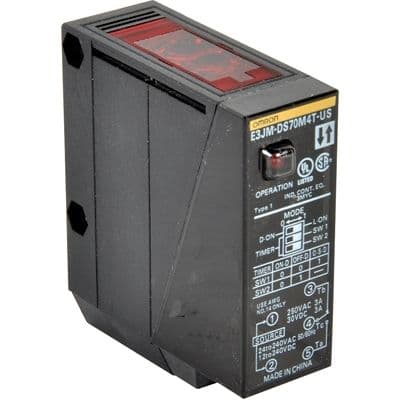

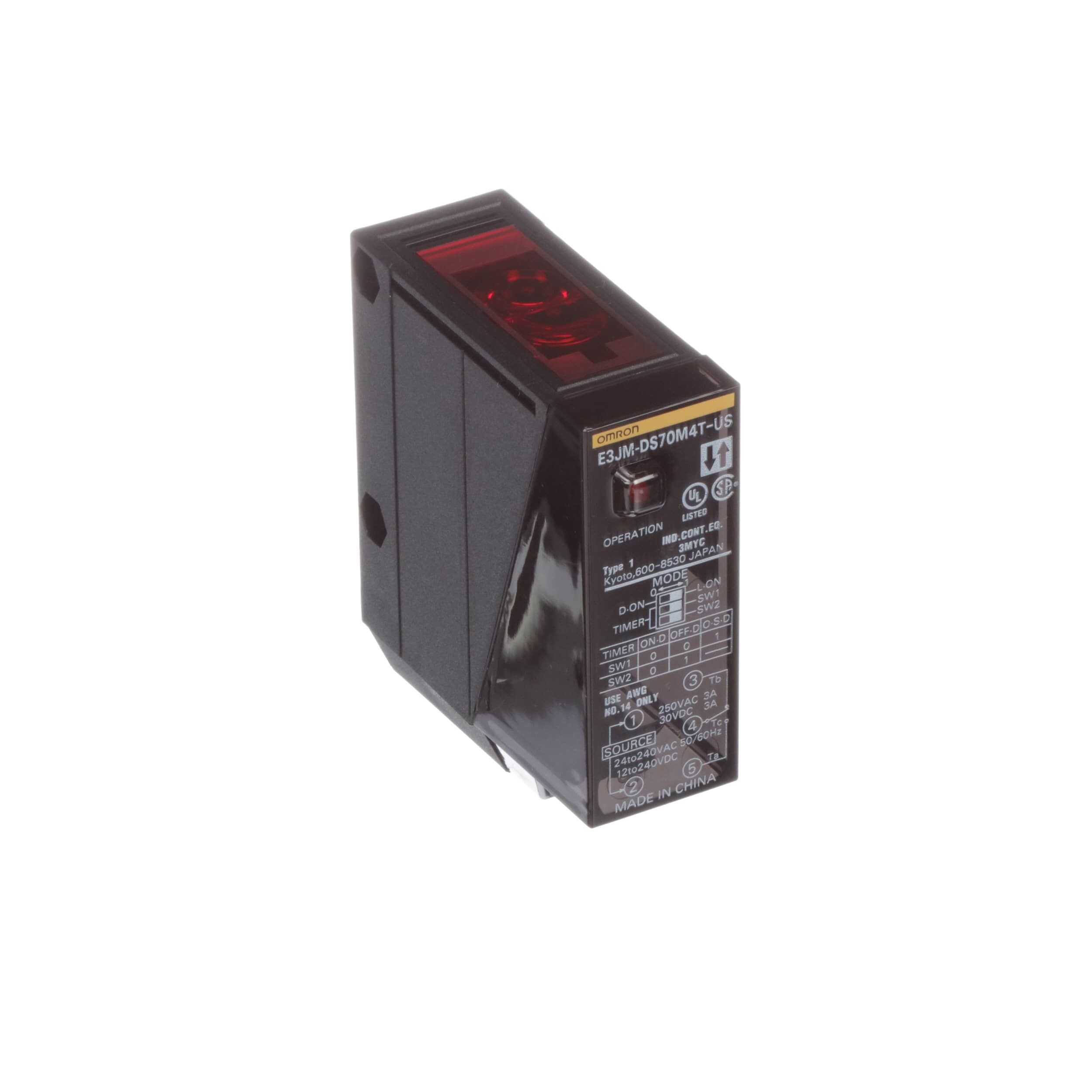

The Omron E3JM-DS70M4T-US is a photoelectric sensor with a through-beam and retro-reflective configuration, featuring a sensing distance of 700mm and a response time of 30ms. It operates within a temperature range of -25°C to 55°C and is approved by UL. The sensor has a dark-on output configuration and a relay output type, with a maximum supply voltage of 240V and a minimum supply voltage of 12V. It is packaged in a bulk quantity of one unit, with a weight of 4.6oz and dimensions of 25mm in width, 75mm in length, and 65mm in height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3JM-DS70M4T-US datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3JM-DS70M4T-US technical specifications.
| Approvals | UL |
| Height | 65mm |
| Length | 75mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 240V |
| Min Supply Voltage (DC) | 12V |
| Max Supply Voltage | 240V |
| Min Supply Voltage | 12V |
| Mount | Brackets, Screw |
| Output Configuration | Dark-On |
| Output Type | RELAY |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66 |
| Reach SVHC Compliant | Unknown |
| Response Time | 30ms |
| RoHS Compliant | No |
| Sensing Distance | 700mm |
| Series | E3JM |
| Termination | Terminal Block |
| Weight | 4.6oz |
| Width | 25mm |
| RoHS | Not Compliant |
