Photoelectric sensor with NPN output, dark-on configuration, and a sensing distance of 78.74 inches. Features a 2m cable termination, 0.5ms response time, and a 100mA output current. Operates on 10-30V DC supply voltage, with a 24V operating voltage. Constructed with a polybutylene body, measuring 51.3mm length, 12mm width, and 21mm height. Rated IP67 and cULus approved, this sensor is RoHS compliant and mounts via brackets or screw.
MountingBrackets, Screw
Quick Jump:
Technical Specifications
Omron E3S-AR11 technical specifications.
General
| Approvals | cULus |
| Body Material | Polybutylene |
| Height | 21mm |
| Lead Free | Contains Lead |
| Lead Length | 2m |
| Length | 51.3mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Brackets, Screw |
| Operating Supply Voltage | 24V |
| Output Configuration | Dark-On |
| Output Current | 100mA |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Time | 0.5ms |
| RoHS Compliant | Yes |
| Sensing Distance | 78.74inch |
| Series | E3S-A |
| Termination | Cable |
| Weight | 2.1oz |
| Width | 12mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron E3S-AR11 Datasheet
Download the complete datasheet for Omron E3S-AR11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

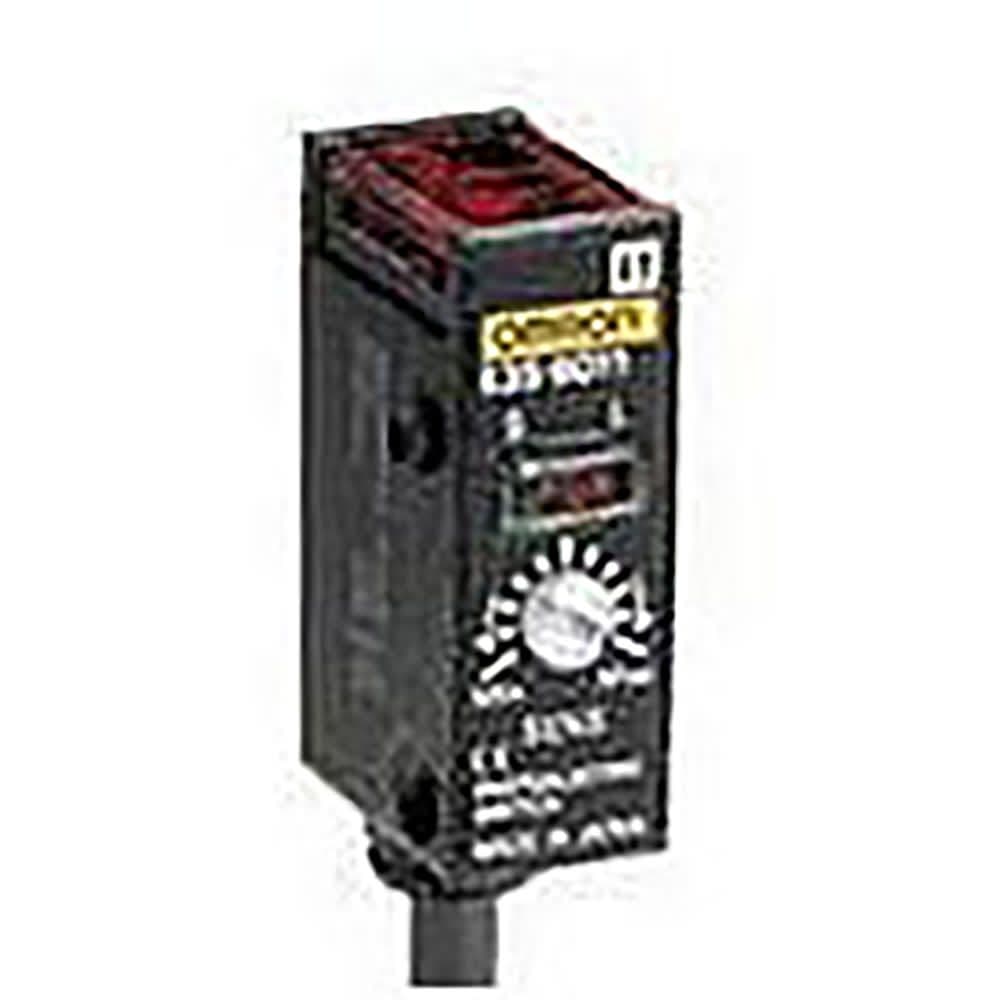

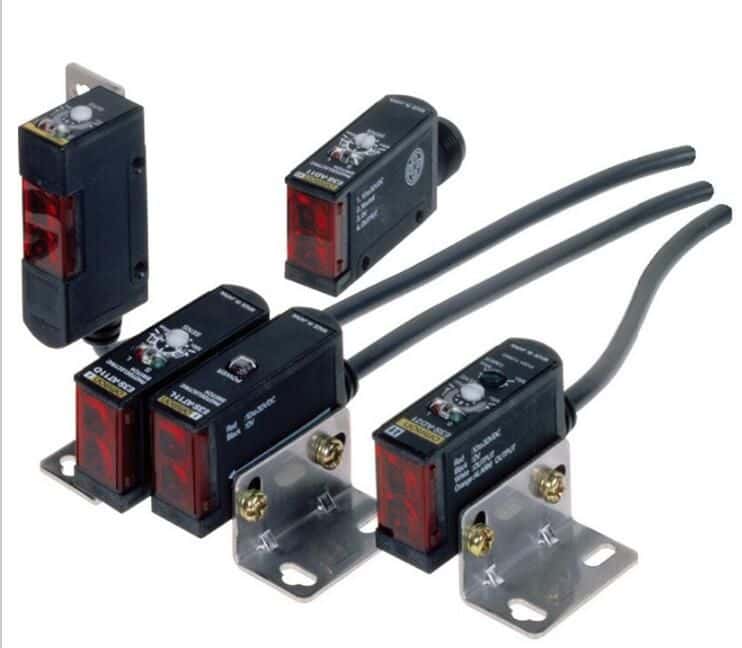

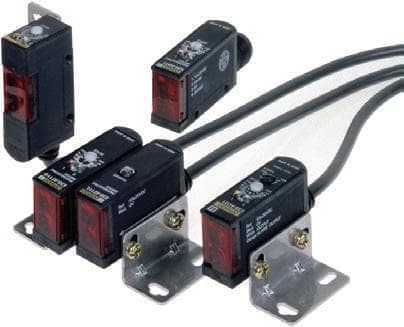

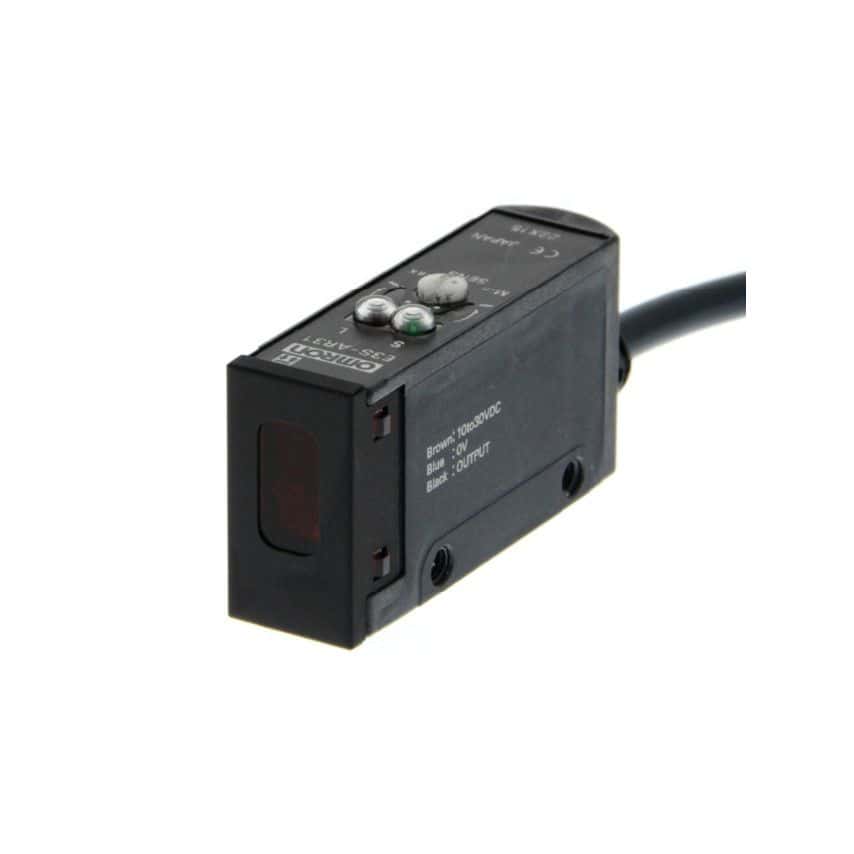

Product Images
