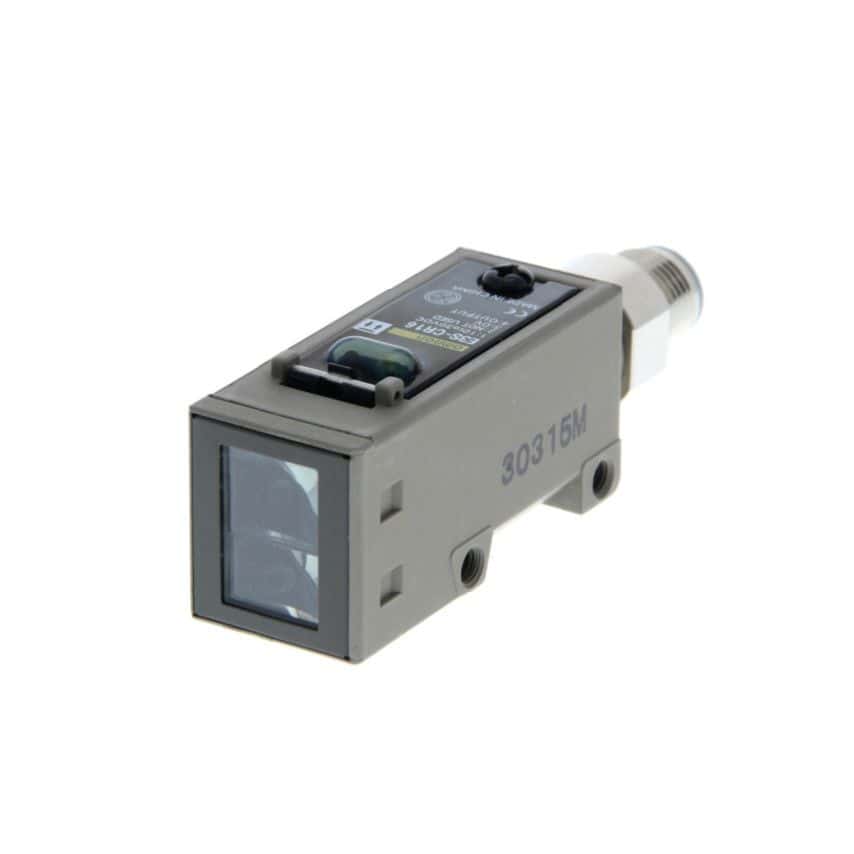

The Omron E3S-CR16 is a general purpose sensor with a maximum operating temperature of 55°C and a minimum operating temperature of -25°C. It has a sensing distance of 3000mm and a response time of 1ms. The sensor is rated for use in environments with an IP67 rating and is RoHS compliant. It is available in a bulk packaging configuration with a package quantity of 1.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3S-CR16 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3S-CR16 technical specifications.
| Height | 29.5mm |
| Length | 74mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Screw |
| Operating Supply Voltage | 24V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 3000mm |
| Width | 40.4mm |
| RoHS | Not Compliant |
